Name: Vigolo VPX 410-620 Power Harrow
Brand: Armour Group Australia

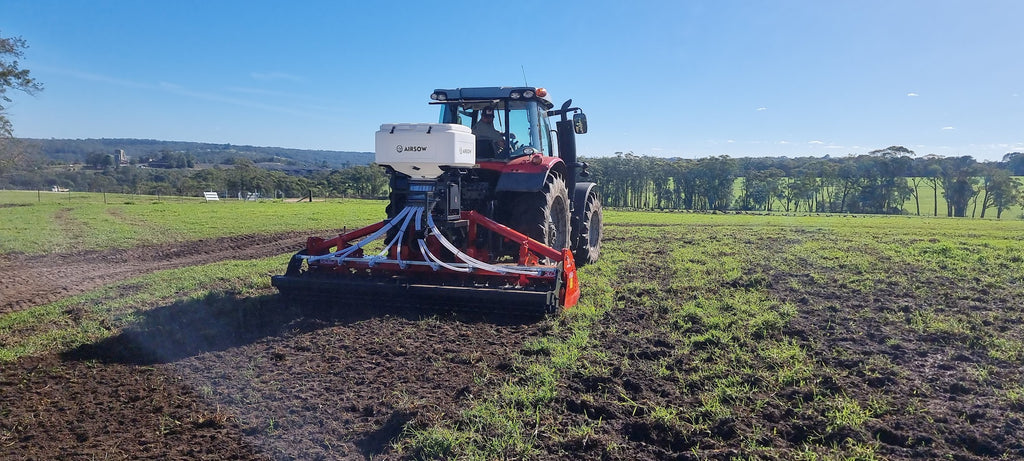

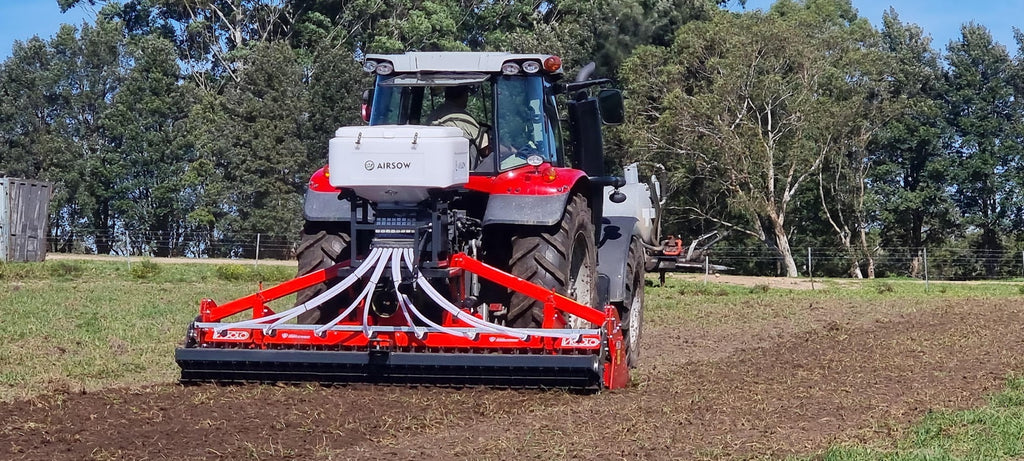

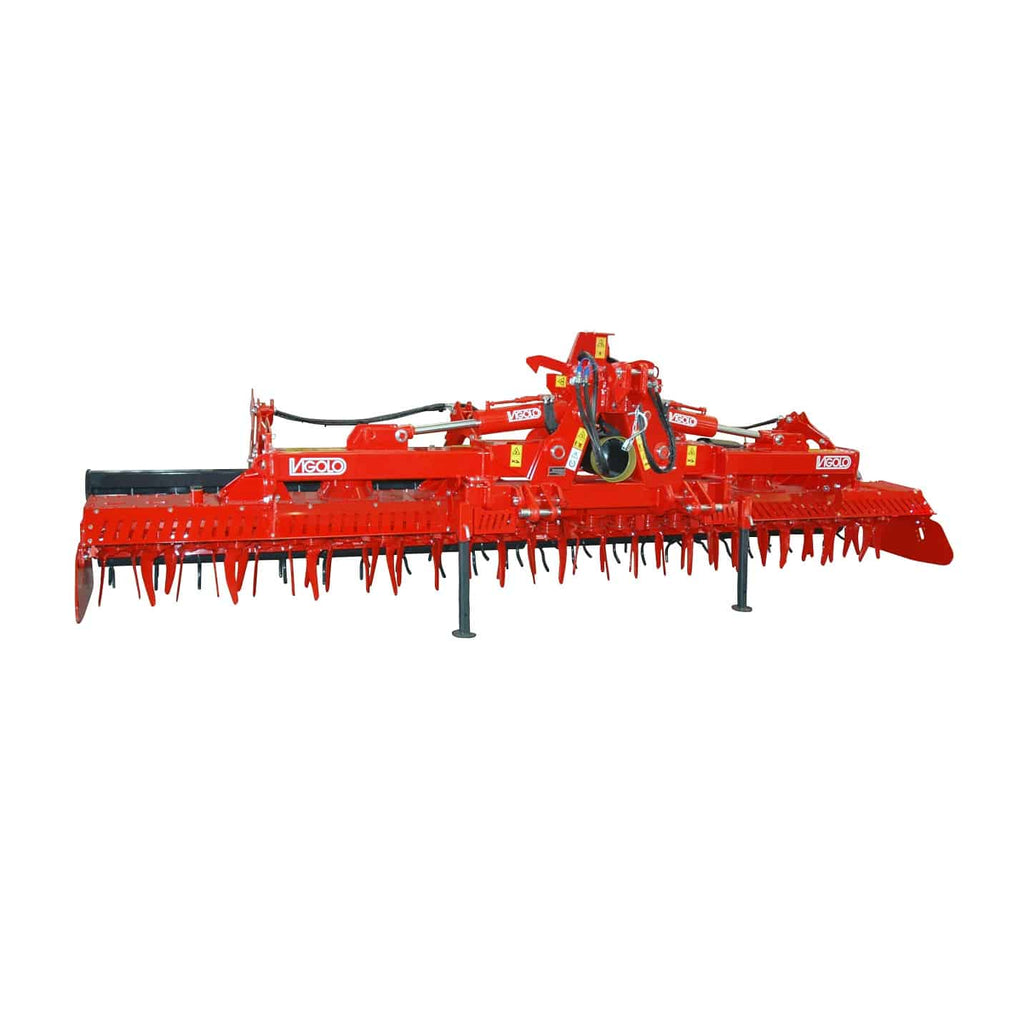

Vigolo VPX 410-620 Power Harrow

The Vigolo VPX 410-620 is a heavy-duty folding Power Harrow designed for tractors from 120 to 380 HP. Available in working widths from 4.1 to 6.26 metres, it gives farmers greater working capacity while folding to approximately 2.48 metres for transport.

Its double-body transmission structure, case-hardened gears and oil-immersed tapered roller bearings are designed for sustained cultivation work. A close 215 mm rotor pitch and curved 320 mm tines help create a fine, consistent seedbed across the full working width.

The rear levelling blade is mounted on the roller so it maintains the correct working angle as the roller is adjusted. Height-adjustable endplates help the machine follow uneven ground, while the folding lock and automatic sequential release support safe, practical operation.

Built in Italy by Vigolo and supported locally by Armour Group, the VPX combines broad working width with a manageable transport profile and the strength required for high-powered tractors.

1/3

Description Download

DB 300-450 Vigolo Power Harrow

Standard features

Suitable for tractors from 110 to 250 HP
Working widths from 2.98 to 4.485 metres
ISO universal three-point linkage with Category 2 oscillating fork and Category 2/3 pins
Vigolo G8 one-speed central gearbox for 540 ECO/1000 PTO
Two PTO inputs
Increased-height double-body transmission structure
Case-hardened transmission gears
Oil-immersed tapered roller bearings
240 mm rotor pitch
Curved 330 mm tines
Tine dimensions: 330 x 110 x 15 mm
Height-adjustable endplates with shock absorbers
Rear levelling blade
Pin-adjusted rear roller position
Side stiffening braces
Prepared for compatible ASM and ASI N seeder couplers
Prepared for Vigolo’s rapid tine-release system
PTO shaft with disc clutch and 1 3/8-inch, six-spline tractor connection
EC safety guard kit
Optional variable rotor speed from 280 to 510 rpm

Standard rotor speeds

395 rpm at 1000 PTO
472 rpm using 540 ECO

Model specifications

Model	Working width	Transport/overall width	Tractor power	Rotors
DB 300	2,980 mm	2,995 mm	110-250 HP	12
DB 350	3,460 mm	3,500 mm	120-250 HP	14
DB 400	4,005 mm	4,055 mm	130-250 HP	16
DB 450	4,485 mm	4,535 mm	140-250 HP	18

Machine weight by rear roller configuration

Model	Cage roller	Spike roller	Packer Ø323/470	Packer Ø355/500	Packer Ø406/550
DB 300	1,400 kg	1,510 kg	1,620 kg	1,650 kg	1,700 kg
DB 350	1,550 kg	1,750 kg	1,900 kg	1,940 kg	2,000 kg
DB 400	1,800 kg	1,950 kg	2,100 kg	2,140 kg	2,210 kg
DB 450	2,000 kg	2,100 kg	2,450 kg	2,500 kg	2,650 kg

Talk to the Armour Group team about the right DB model and roller configuration for your tractor, soil and farming operation. Call (02) 4862 9080.

Power Harrow Brochure
