Name: Vigolo FVG 370-520 Rotary Hoe
Brand: Armour Group Australia

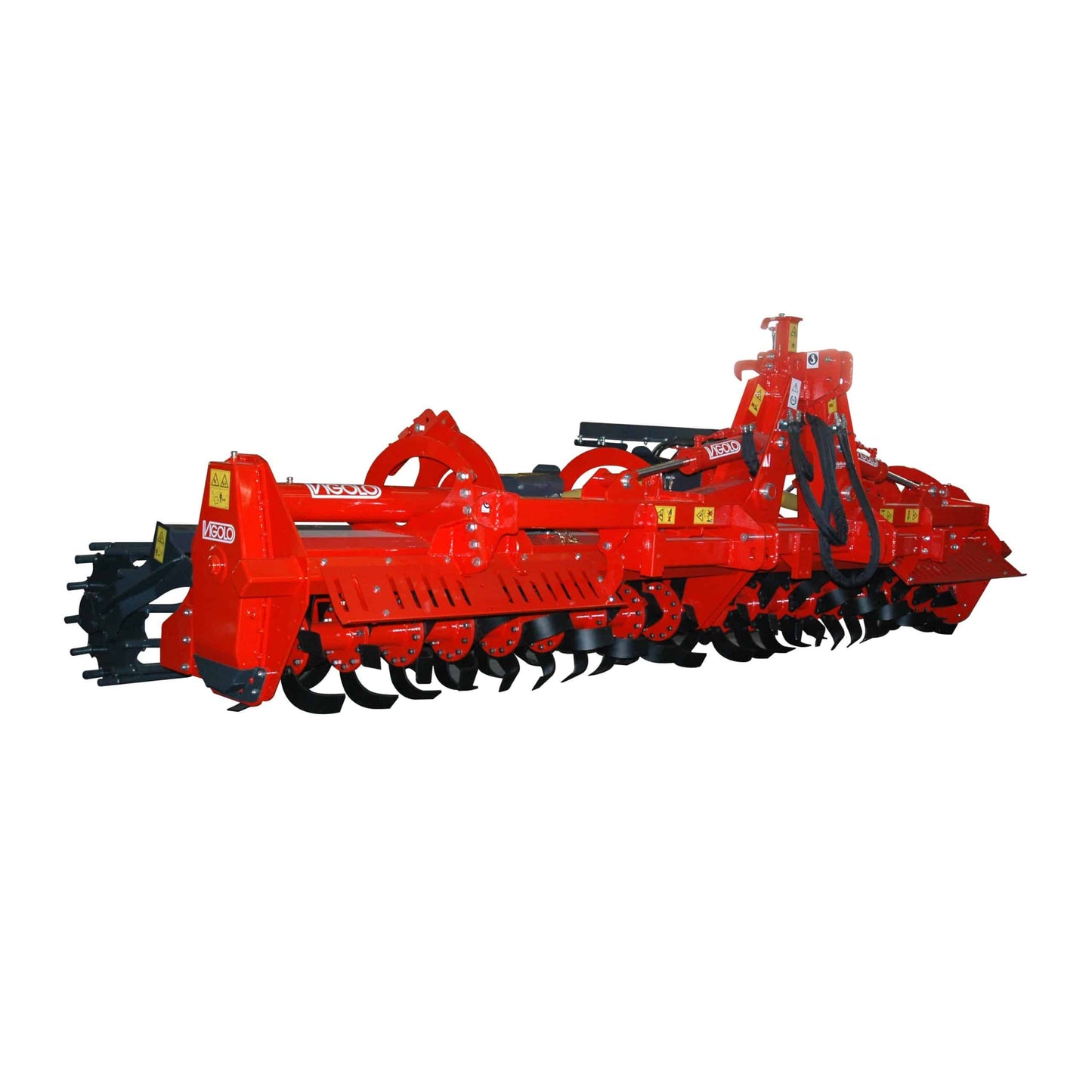

Vigolo FVG 370-520 Rotary Hoe

The Vigolo FVG 370-520 is a heavy-duty folding Rotary Hoe designed for farmers who need to cultivate large areas efficiently. Available in working widths from 3.7 to 5.2 metres, it is suited to high-powered tractors from 150 to 380 HP.

Its reinforced construction and gear-driven transmission with double transfer are designed to deliver power reliably across the full working width. Six curved blades per flange thoroughly cultivate and mix the soil, helping create a consistent seedbed across every pass.

The folding design provides the working capacity of a wide machine while making transport between paddocks and properties more practical. A locking safety system, automatic sequential release, rear lights and road travel boards are included for safer folding and transport.

Built in Italy by Vigolo and supported locally by Armour Group, the FVG 370-520 combines broadacre capacity with the strength and reliability required for demanding cultivation work.

1/4

Description

FVG 370-520 Vigolo Folding Rotary Hoe

Standard features

Suitable for tractors from 150 to 380 HP
Working widths from 3.7 to 5.2 metres
Reinforced ISO universal three-point linkage
Category 2 and 3 hitch
One-speed central gearbox for 1000 rpm PTO

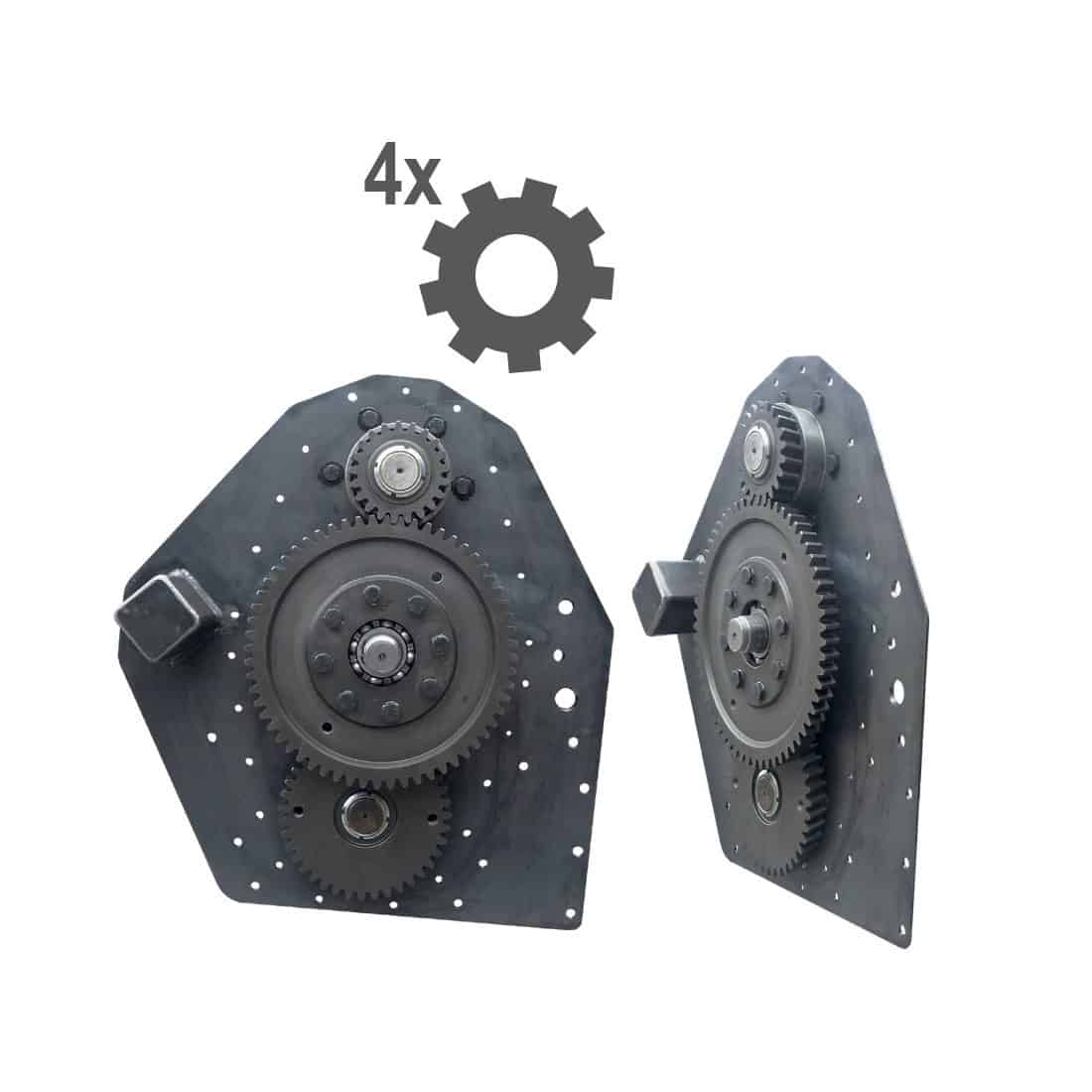

Gear-driven transmission with double transfer
Six curved blades per flange
Reinforced double blade flanges
Spring-loaded rear hood
Pin-adjusted rear roller position
Folding safety lock with automatic sequential release
Direct central PTO shaft with 1 3/8-inch, six-spline tractor connection
Side PTO shafts with automatic torque clutches rated up to 380 HP
Rear lighting and road travel board kit
EC safety guard kit

Rotor speeds

350 rpm with 1:1 gearbox ratio
260 rpm with 1:1.35 gearbox ratio

Available configurations

Skids
Export roller
Spike or spiral roller
Packer roller, 323/470 mm diameter

Model specifications

Model	Working width	Overall width	Tractor power	Blades
FVG-20 370	3,700 mm	4,200 mm	150-320 HP	84
FVG-20 420	4,200 mm	4,700 mm	150-320 HP	96
FVG-20 470	4,700 mm	5,200 mm	150-320 HP	108
FVG-25 520	5,200 mm	5,700 mm	180-380 HP	120

Machine weight by configuration

Model	With skids	Export roller	Spike/spiral roller	Packer roller
FVG-20 370	2,750 kg	2,860 kg	2,900 kg	3,180 kg
FVG-20 420	2,850 kg	2,960 kg	3,000 kg	3,330 kg
FVG-20 470	2,920 kg	3,060 kg	3,100 kg	3,430 kg
FVG-25 520	3,150 kg	3,260 kg	3,300 kg	3,690 kg

Talk to the Armour Group team about the right FVG model and rear roller configuration for your tractor, soil and farming operation. Call (02) 4862 9080.
