Combi CM Multi-Feeder. Revolution in Agricultural Efficiency
Specifications

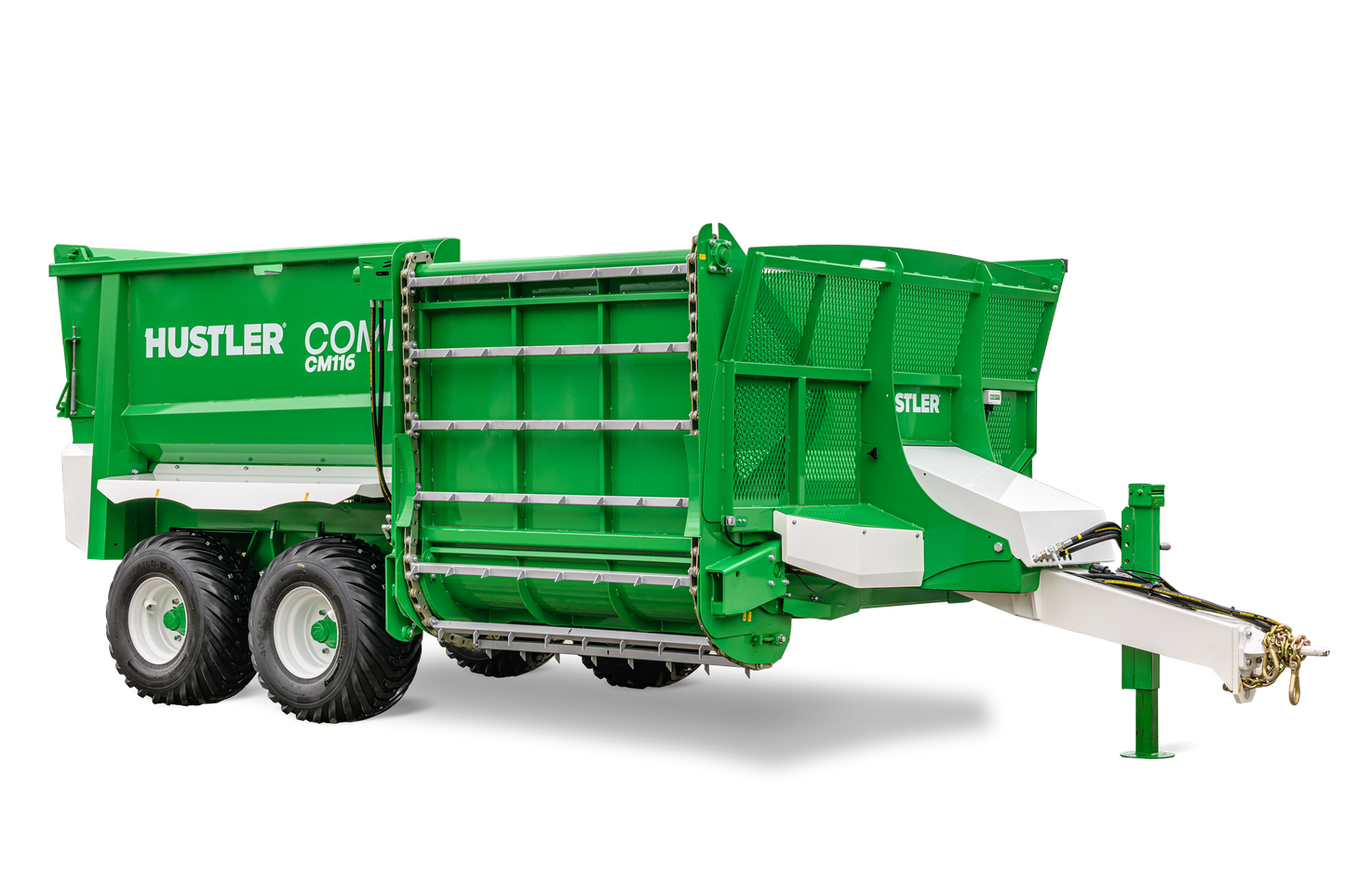

COMBI CM116
| Round Bales: | 3-6 |
| Medium Squares: | 3-6 |
| Large Squares (8ft): | 1-2 |
| Loose Silage (load-level): | 11 m³ | 14.3 yd³ |
| Loose Silage (heaped load): | 12.5 m³ | 16.3 yd³ |
| Maximum Load: | 8,000 kg | 17,636 lb |
| Overall Width: | 2720 mm | 107 in |
| Overall Length: | 6385 mm | 251.3 in |
| Overall Height / Loading Height: | 2300 mm (90.5 in) / 2150 mm (84.6 in) |
| Bin width: | 2290 mm | 90.1 lb |
| Bin length: | 4250 mm | 167.3 in |
| Tare Weight: | 3,590 kg | 794.5 lb |
| Standard Tyres: | 400 / 60 x 15.5 Flotation Grip Tread |
| Axle: | Tandem Walking Beam |
| Brakes: | Optional 2 or 4-wheel braking |
| Weigh Scales: | Optional Feedlink weighing and feed management system |
| Floor material: | Welded Steel |
| Chains (Bed / X floor / Elevator): | Twin 12,000 lb Roller Chains |
| Feed Bars (Bed / X Floor / Elevator): | 65 x 35 RHS / 65 x 35 RHS / 40 x 40 RHS |
| Joystick: | Standard in-cab electric joystick |
| Hydraulics Required: | 2 x double-acting |
| Hydraulic Flow: | 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum) |
| Hydraulic Pressure: | 2050-2500 psi | 140-170 bar |
| Elevator: | 1645 mm | 64.7 in wide chain/slat |
| Jack: | 80 mm | 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand |
| Towing Eye: | 50 mm | 3.1 in swiveling forged eye |

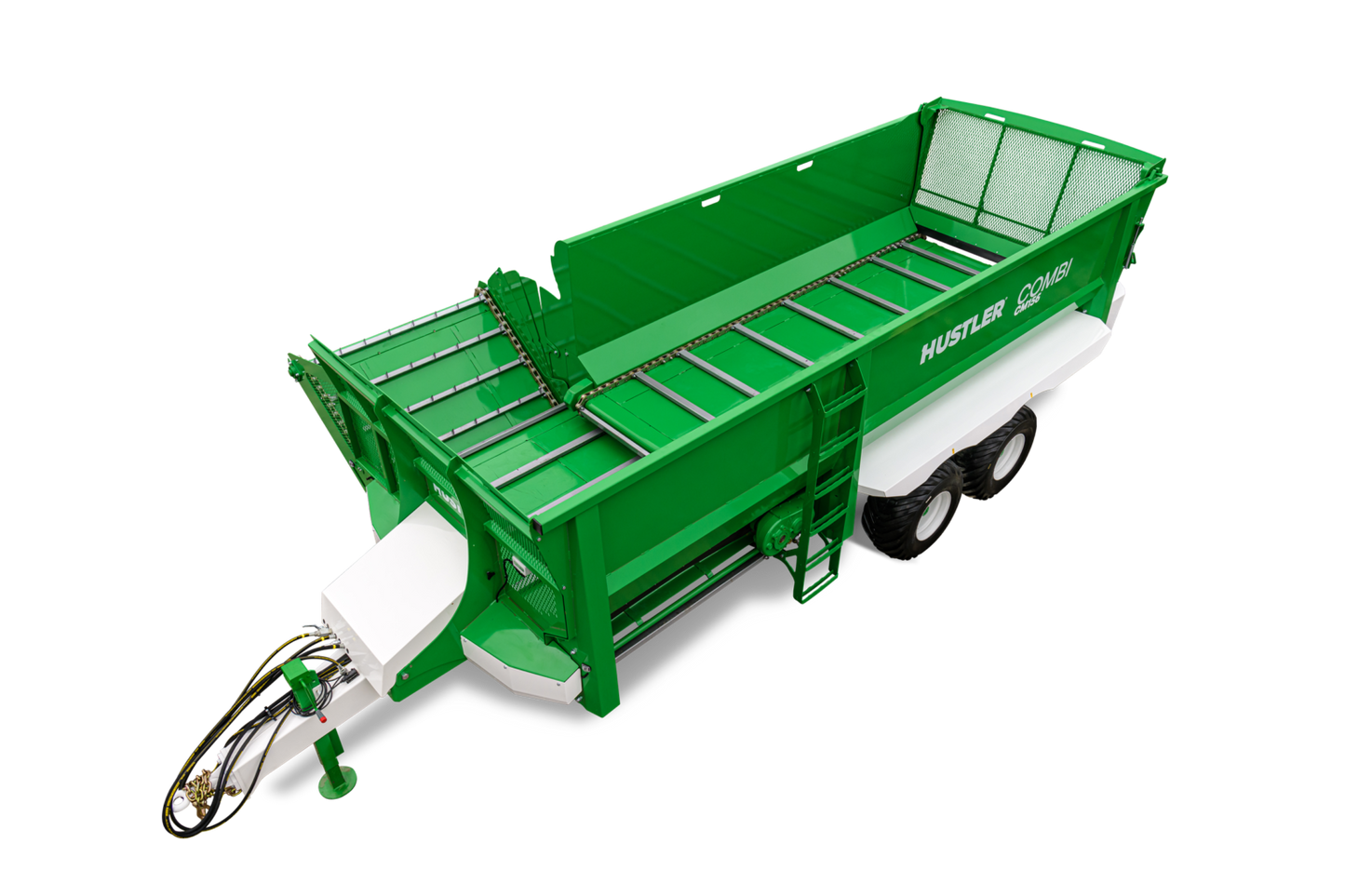

COMBI CM156
| Round Bales: | 4-8 |
| Medium Square Bales: | 4-8 |
| Large Square Bales (8ft): | 2-4 |
| Loose Silage (Load Level): | 15 m³ | 19.6 yd³ |
| Loose Silage (Heaped Load): | 17 m³ | 22.2 yd³ |
| Maximum Load: | 10,000 kg | 22,046 lb |
| Overall Width: | 2720 mm | 107 in |
| Overall Length: | 7920 mm | 311.8 in |
| Overall Height / Loading Height: | 2300 mm (2300 in) / 2150 mm (84.6 in) |
| Bin width: | 2290 mm | 90.1 in |
| Bin length: | 5775 mm | 227.3 in |
| Tare Weight: | 4,210kg | 1909 lb |
| Standard Tyres: | 400 / 60 x 15.5 Flotation Grip Tread |
| Axle: | Tandem Walking Beam |
| Brakes: | Optional 2 or 4-wheel braking |
| Weigh Scales: | Optional Feedlink weighing and feed management system |
| Floor material: | Welded Steel |
| Chains (Bed / Cross Floor / Elevator): | Twin 12,000 lb Roller Chains |
| Feed Bars (Bed / Cross Floor / Elevator): | 65 mm x 35 mm RHS / 65 mm x 35 mm RHS / 40 mm x 40 mm RHS |
| Joystick: | Standard in-cab electric joystick |
| Hydraulics Required: | 2 x double-acting |
| Hydraulic Flow: | 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum) |
| Hydraulic Pressure: | 2050-2500 psi | 140-170 bar |
| Elevator: | 1645 mm | 64.7 in wide chain/slat |
| Jack: | 80 mm | 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand |
| Towing Eye: | 50 mm | 3.1 in swiveling forged eye |
