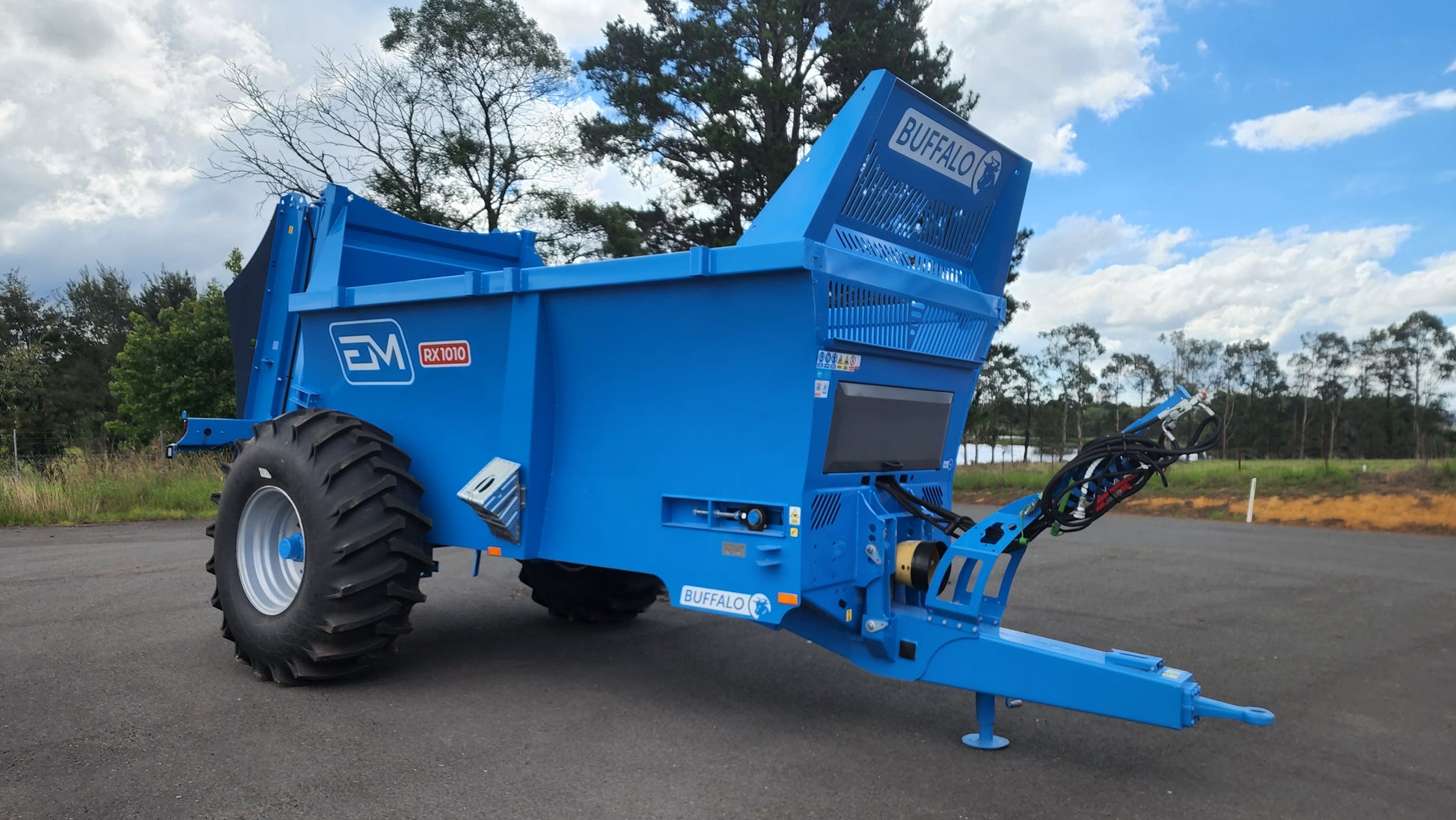

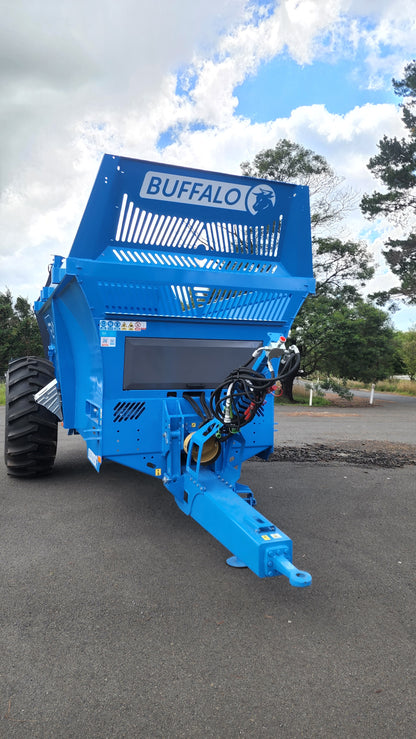

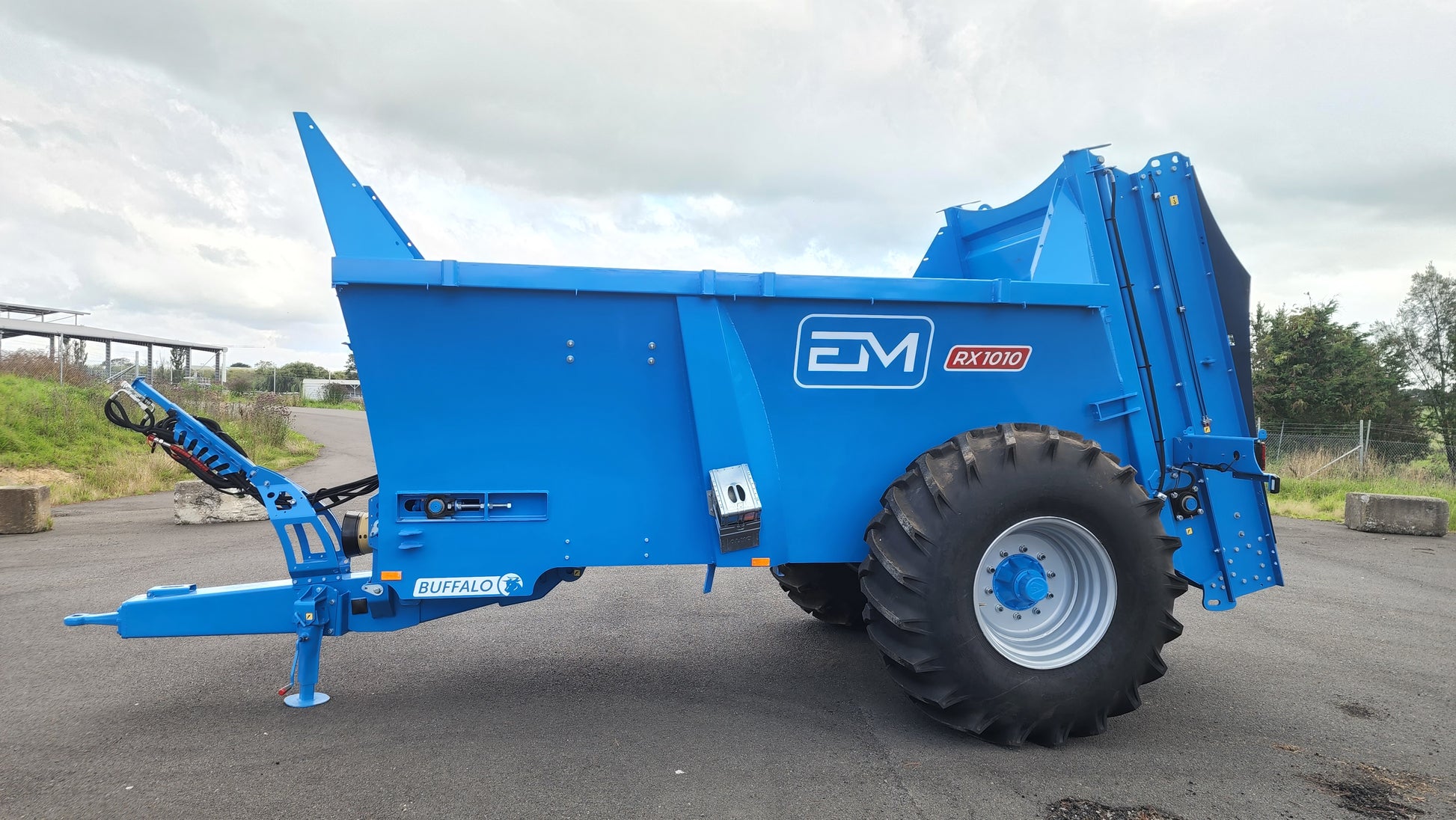

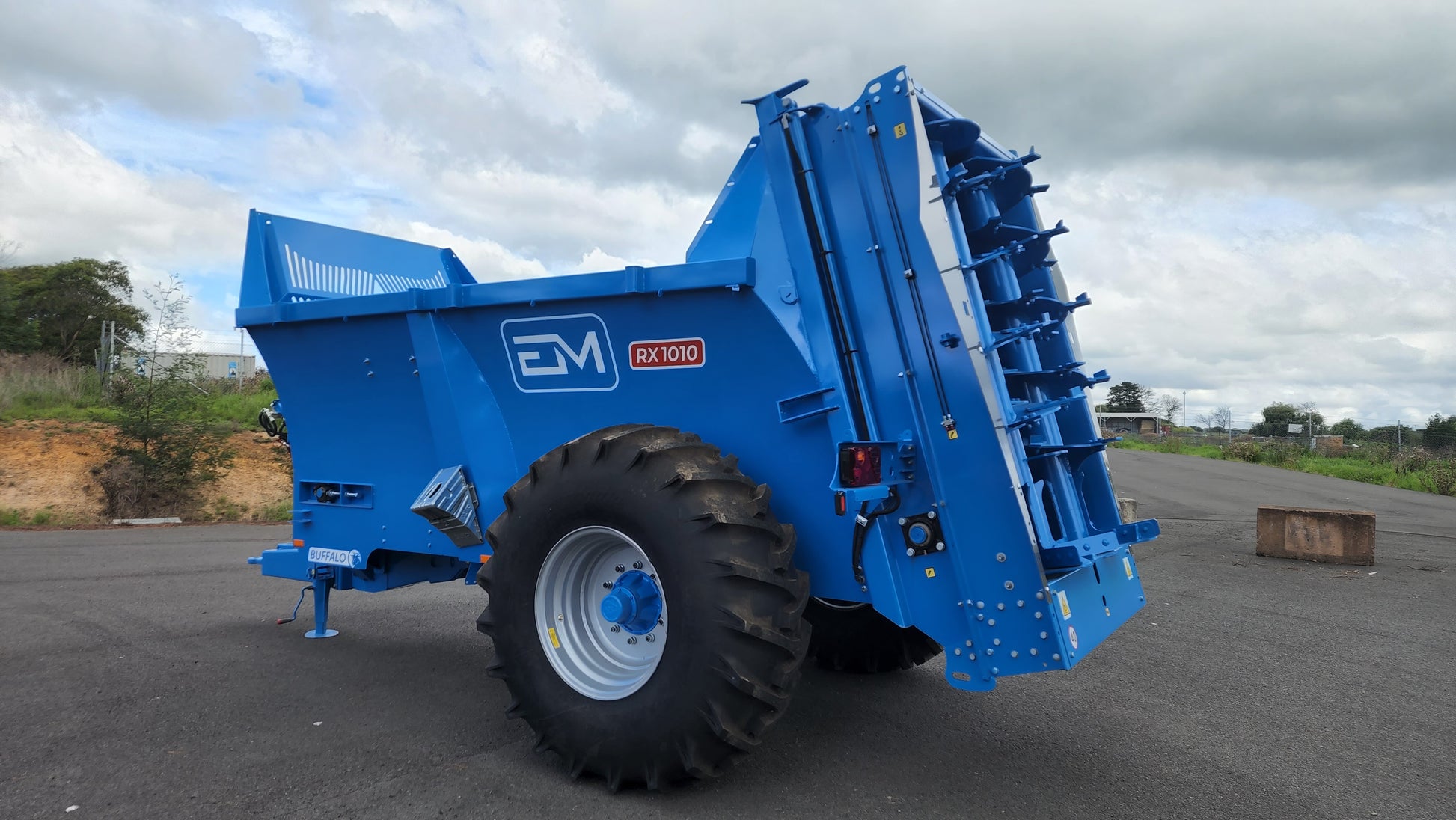

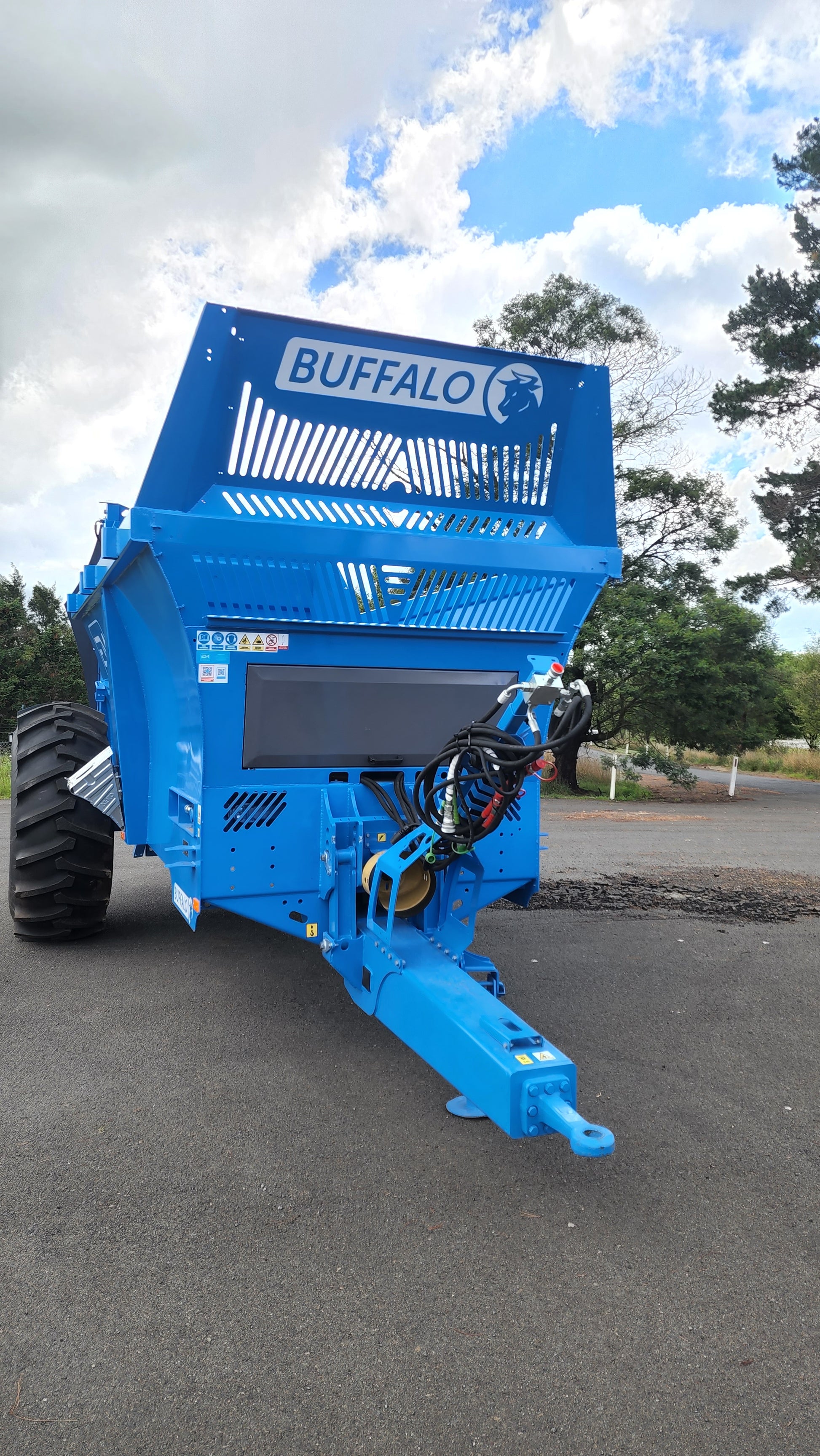

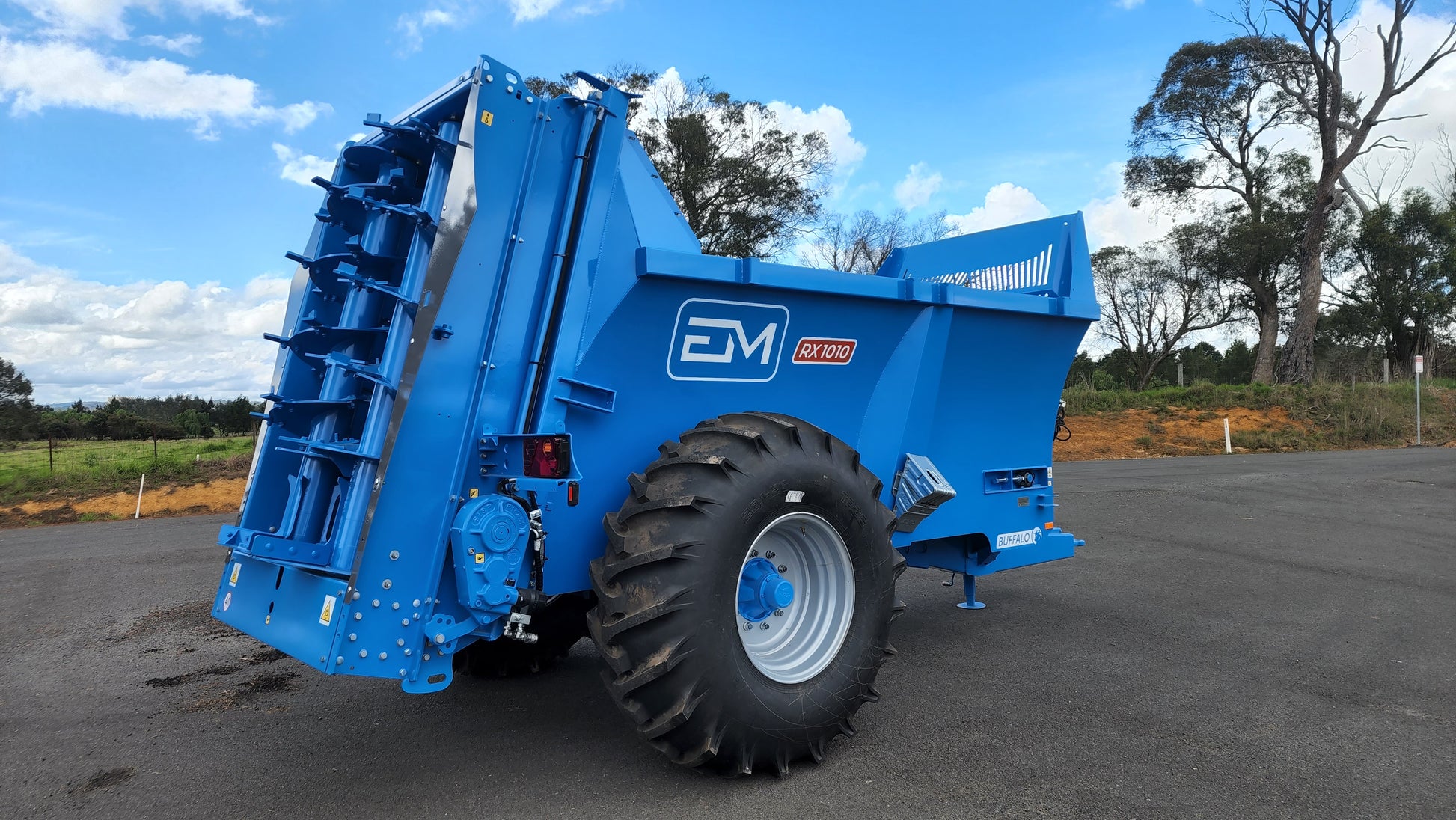

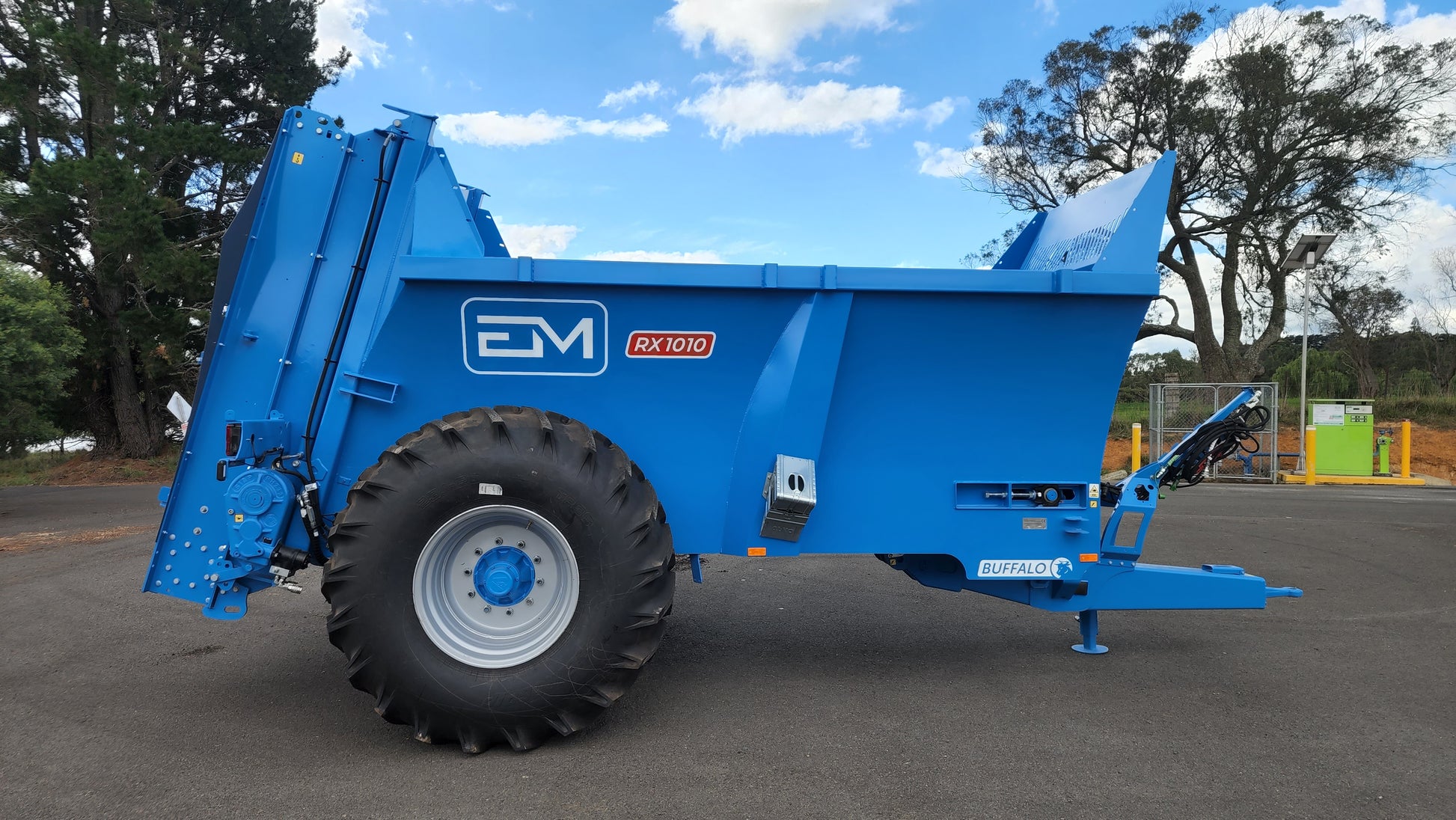

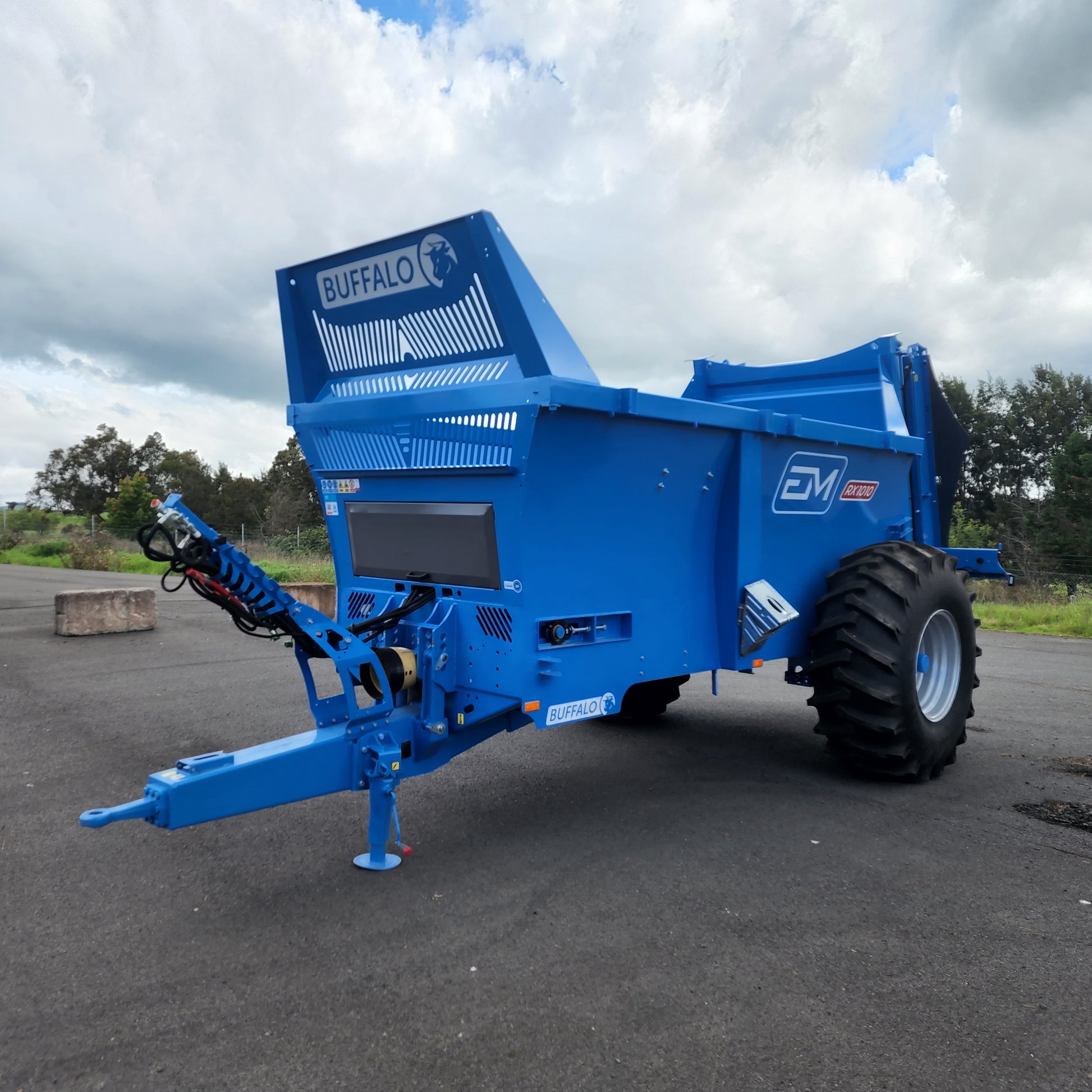

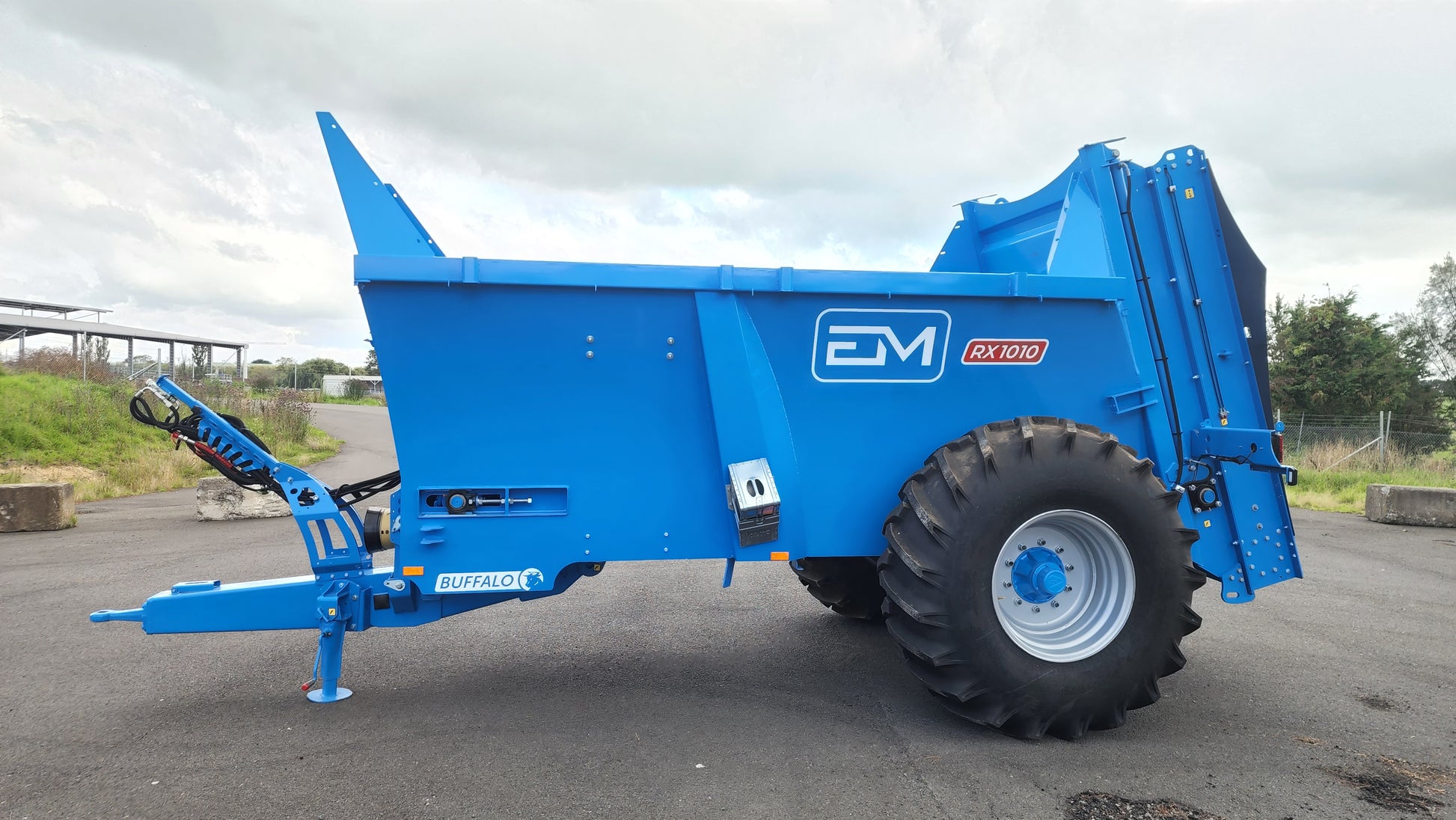

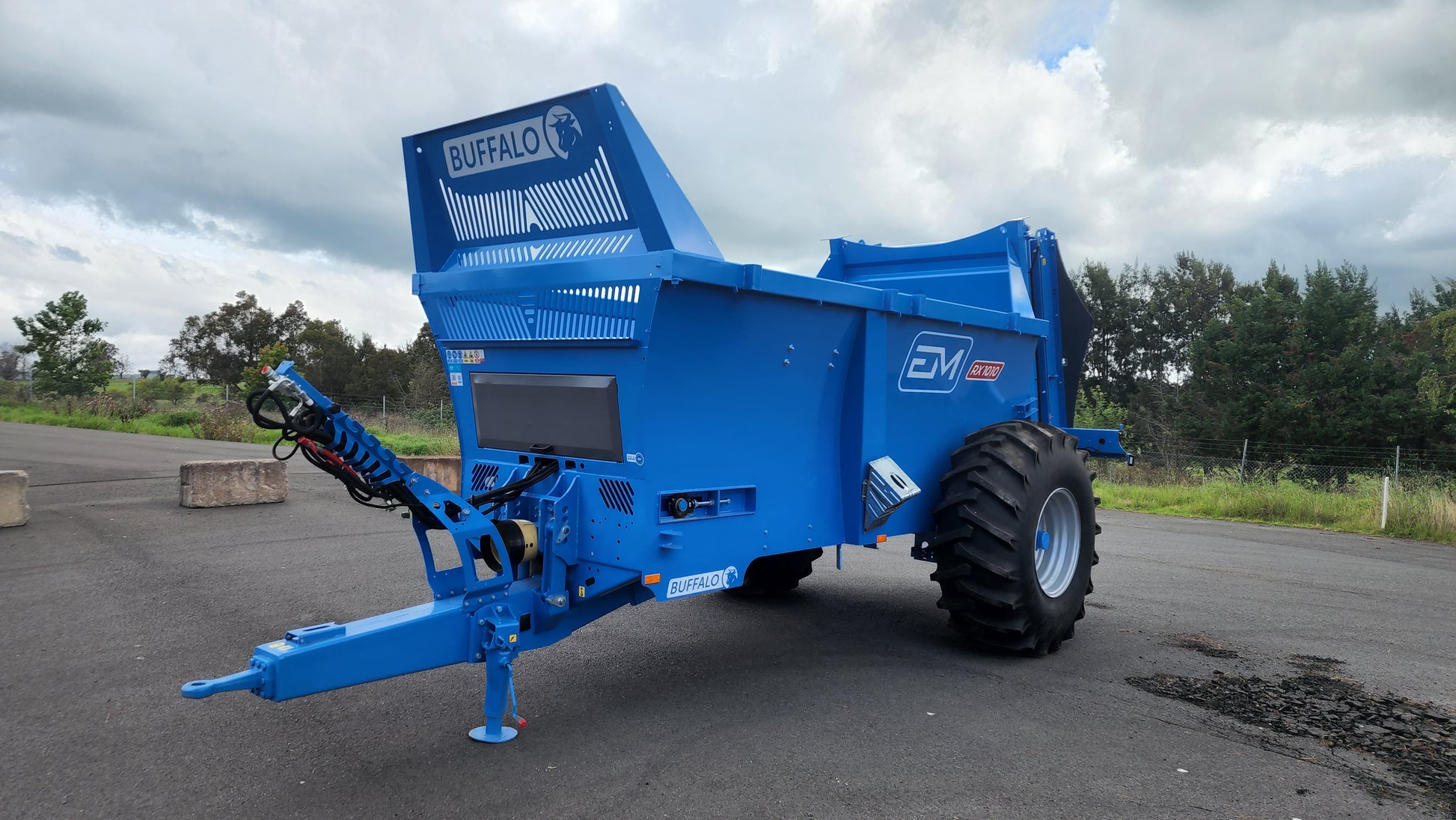

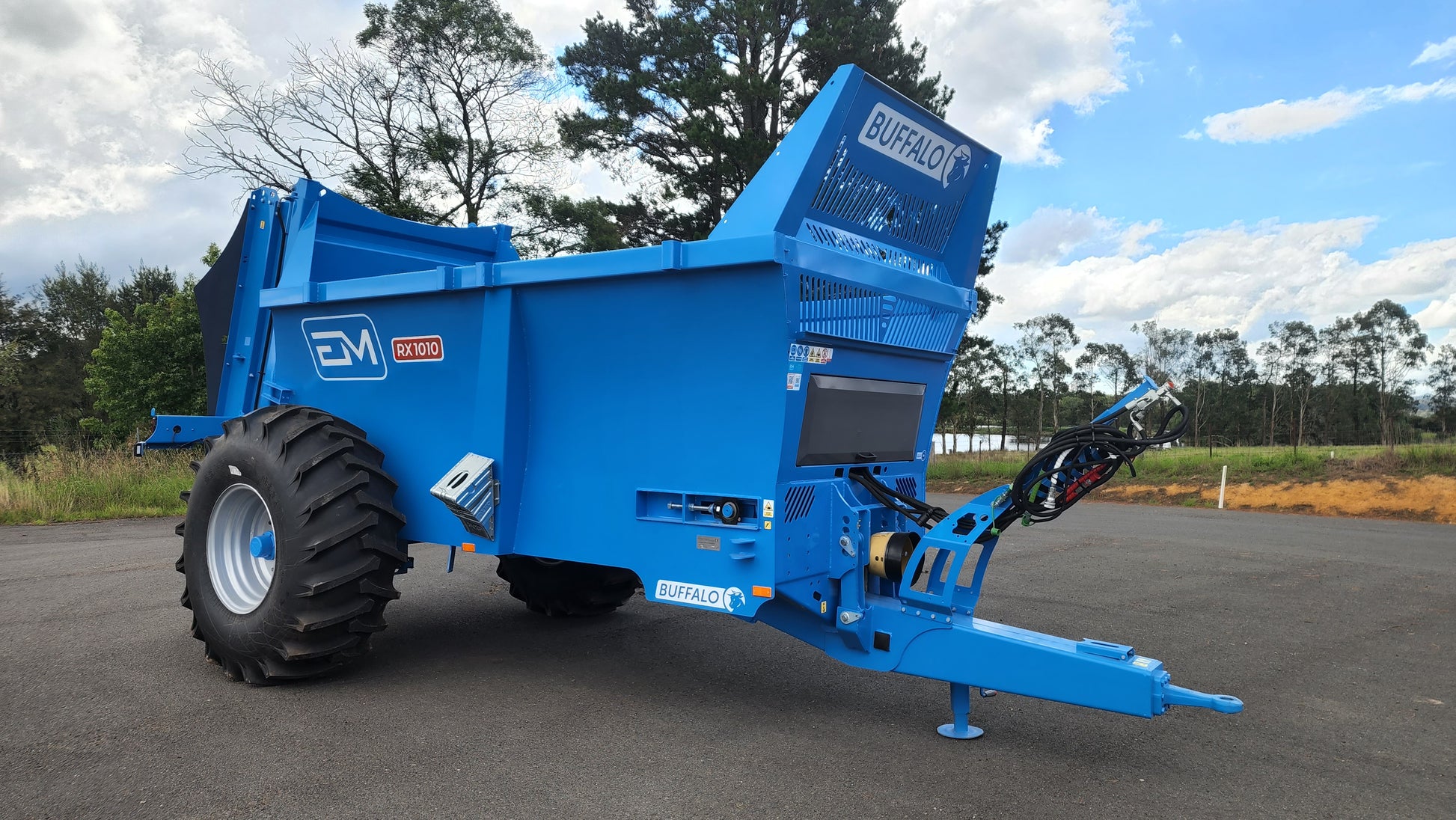

EM RX-1010HD Vertical Beater Manure Spreader
BODY:
- 10.4m2 Capacity (14.5m3 w. Extensions)
- Tapered Body made from 5mm Floor & 4mm Walls in S355J2+N Steel
- 3800mm L x 1100mm H x 1500-1950mm W, Internal Body Dimensions

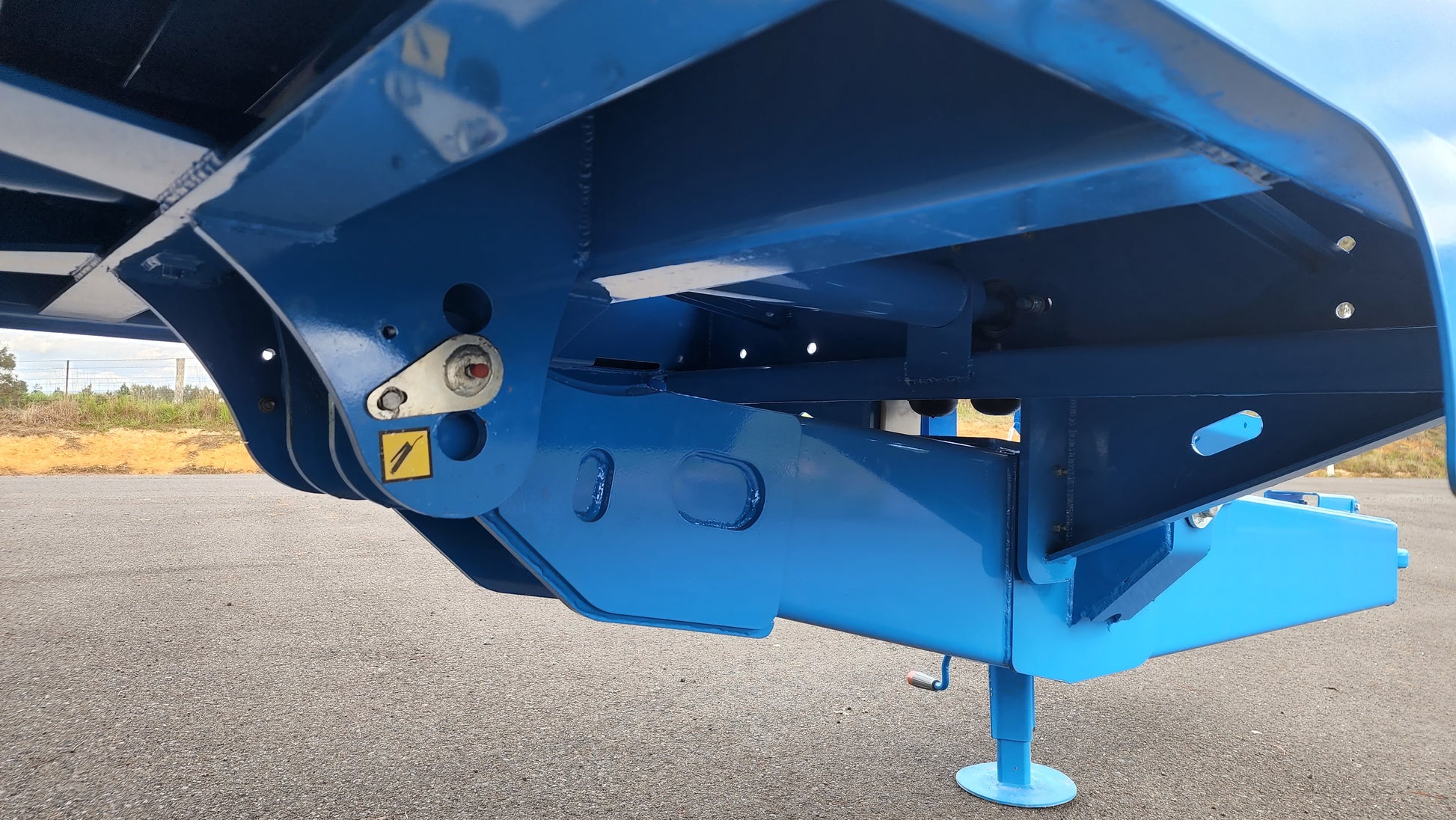

- Manual Jack Stand
- LED Taillights

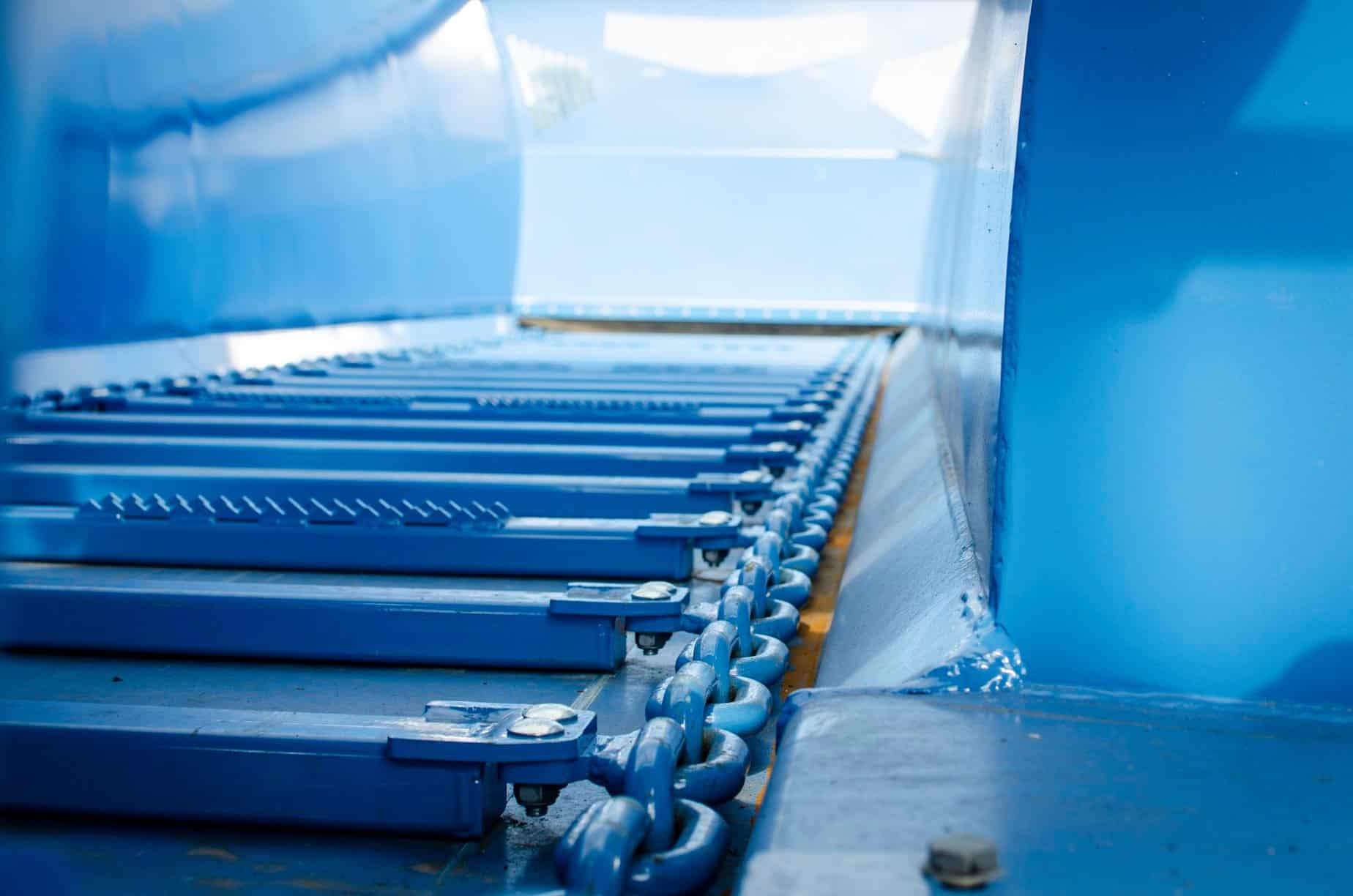

FLOOR:
- Hydraulic Drive Floor (Pressure Relief Protected)
- 5,000nm Drive Gearbox

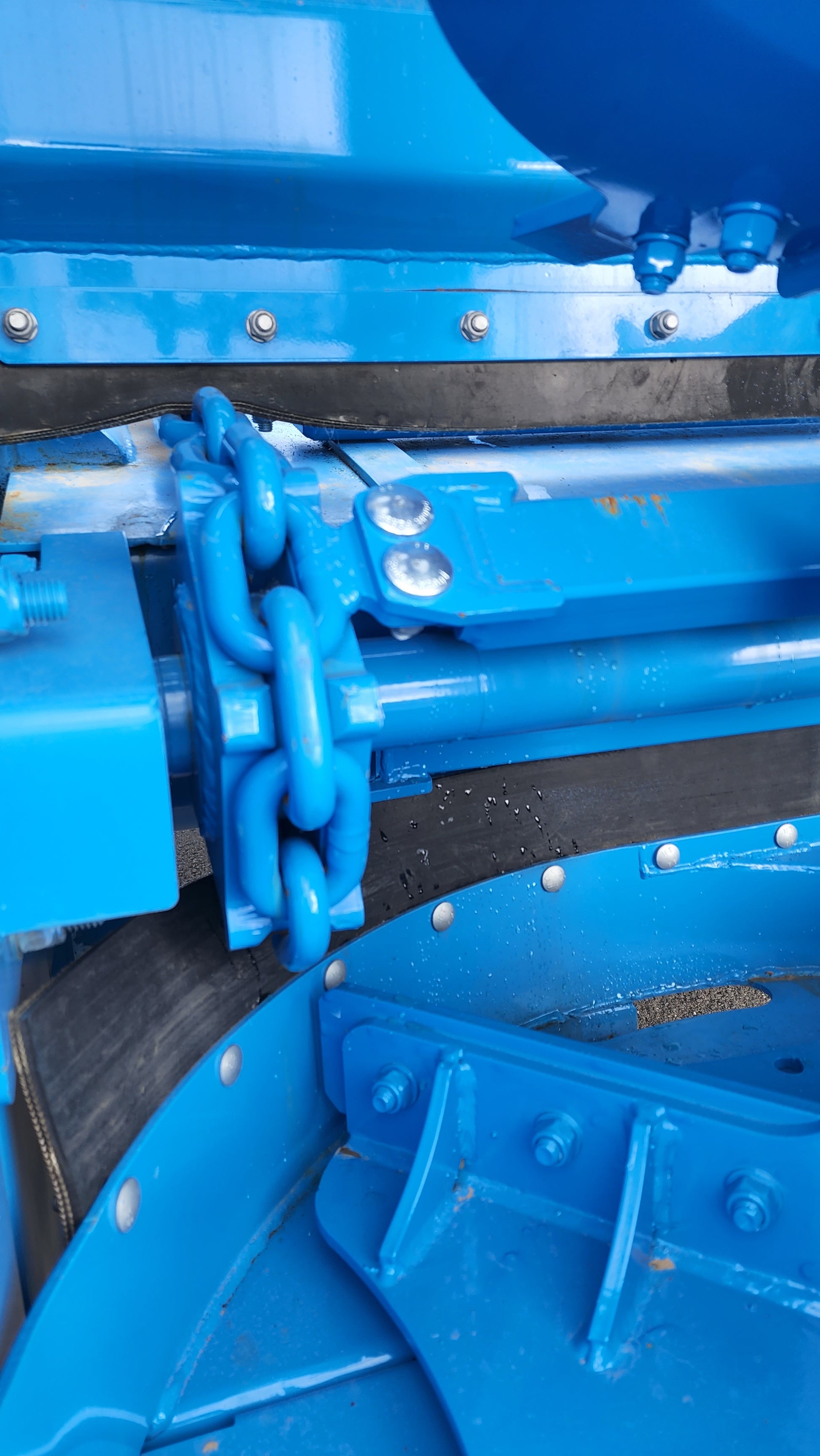

- 18mm Floor Chains
- Fully Welded & Bolt-in Cross Bars
- 60mm Floor Drive Shaft
- Greaseable Bearings on Floor Shafts

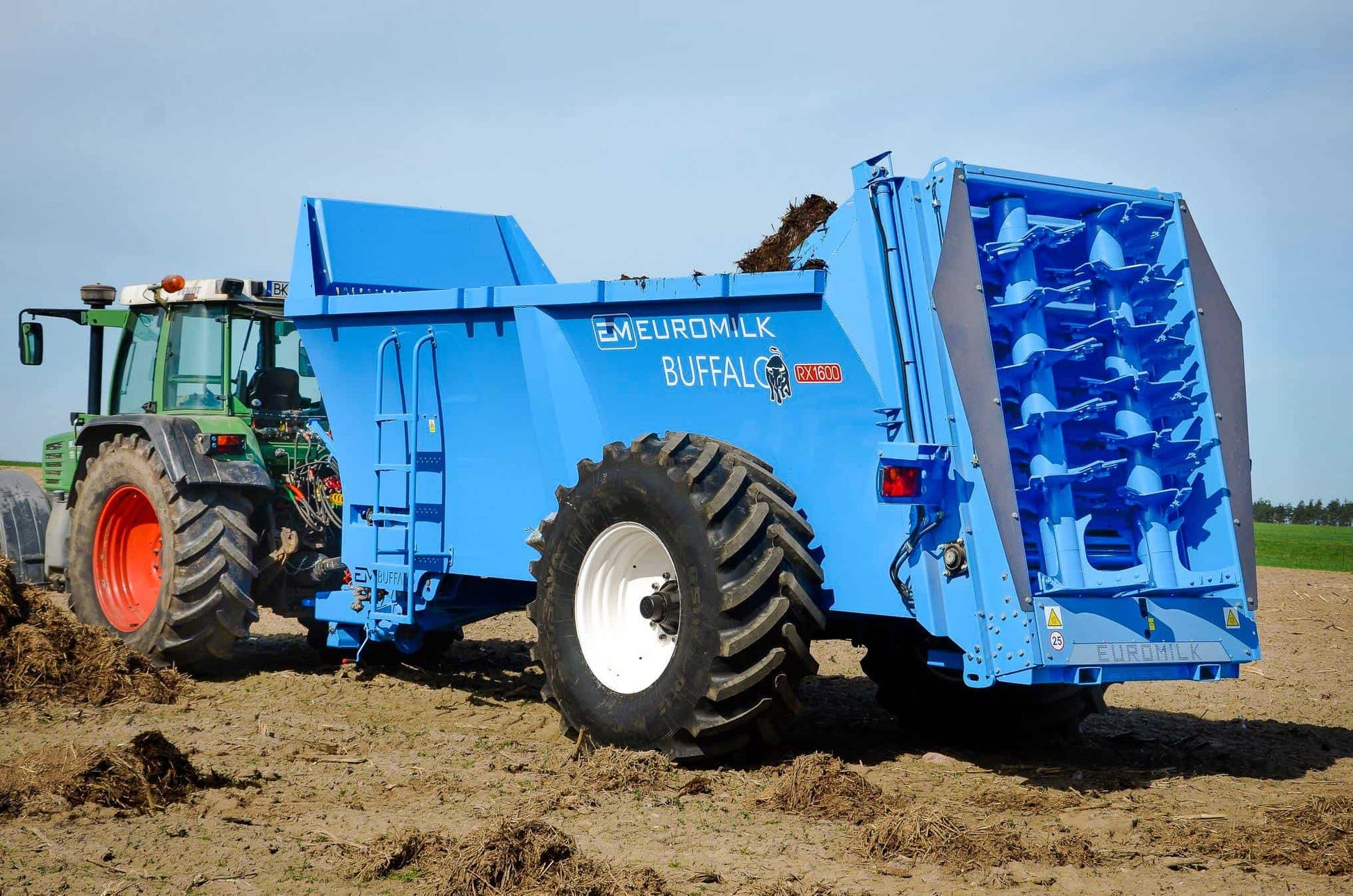

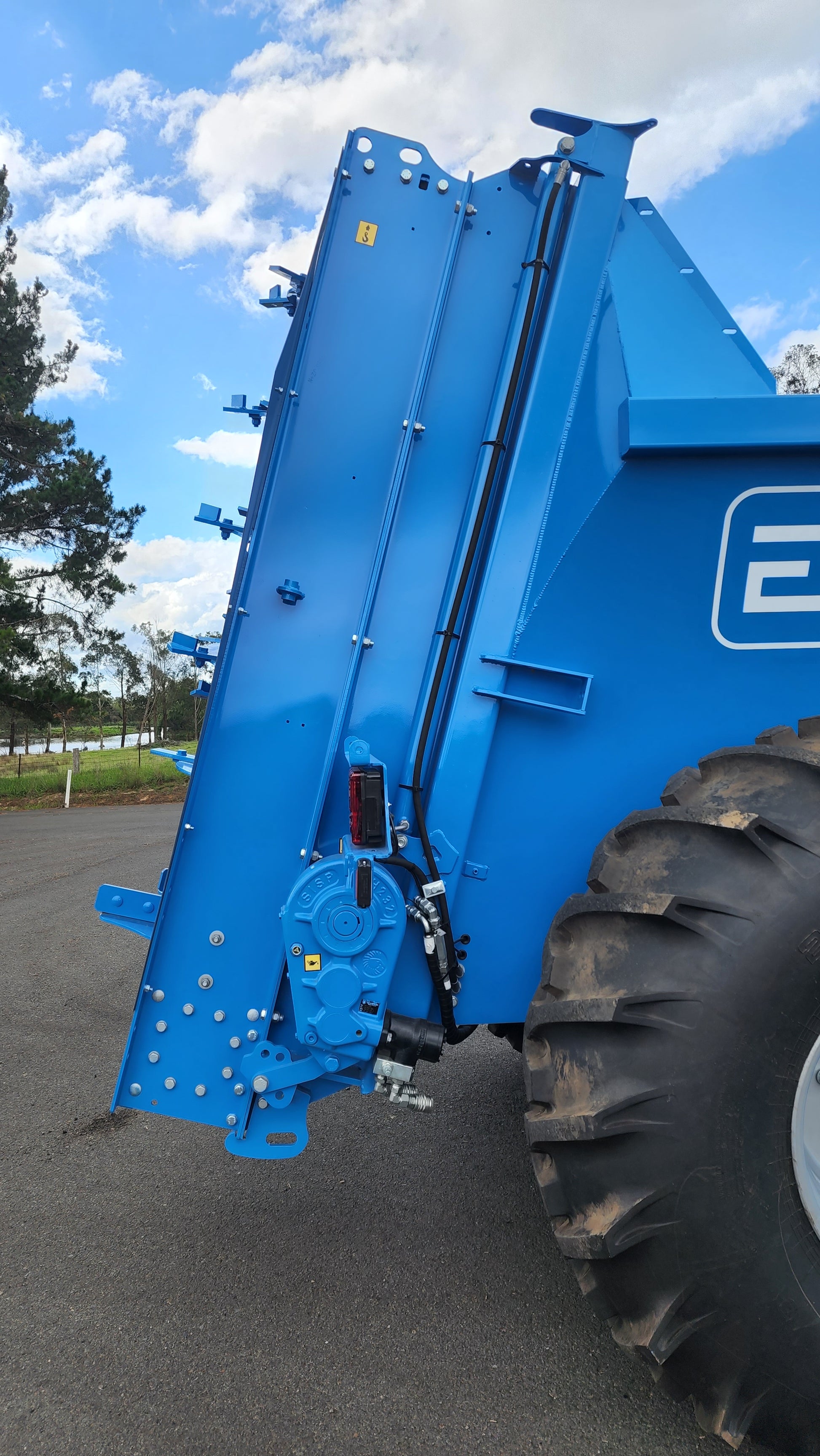

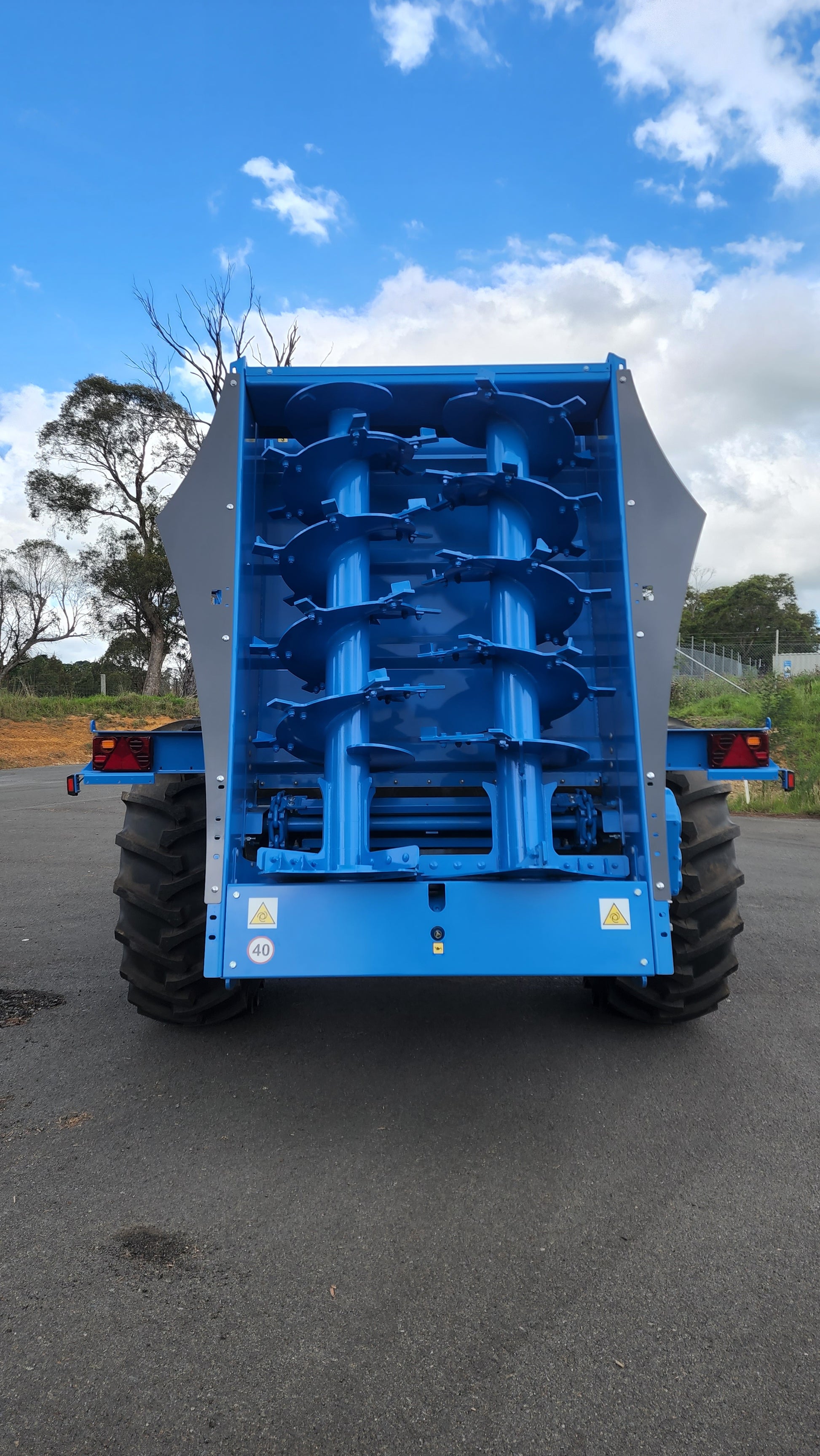

BEATERS:
- Removable Beaters (convert trailer to silage cart)

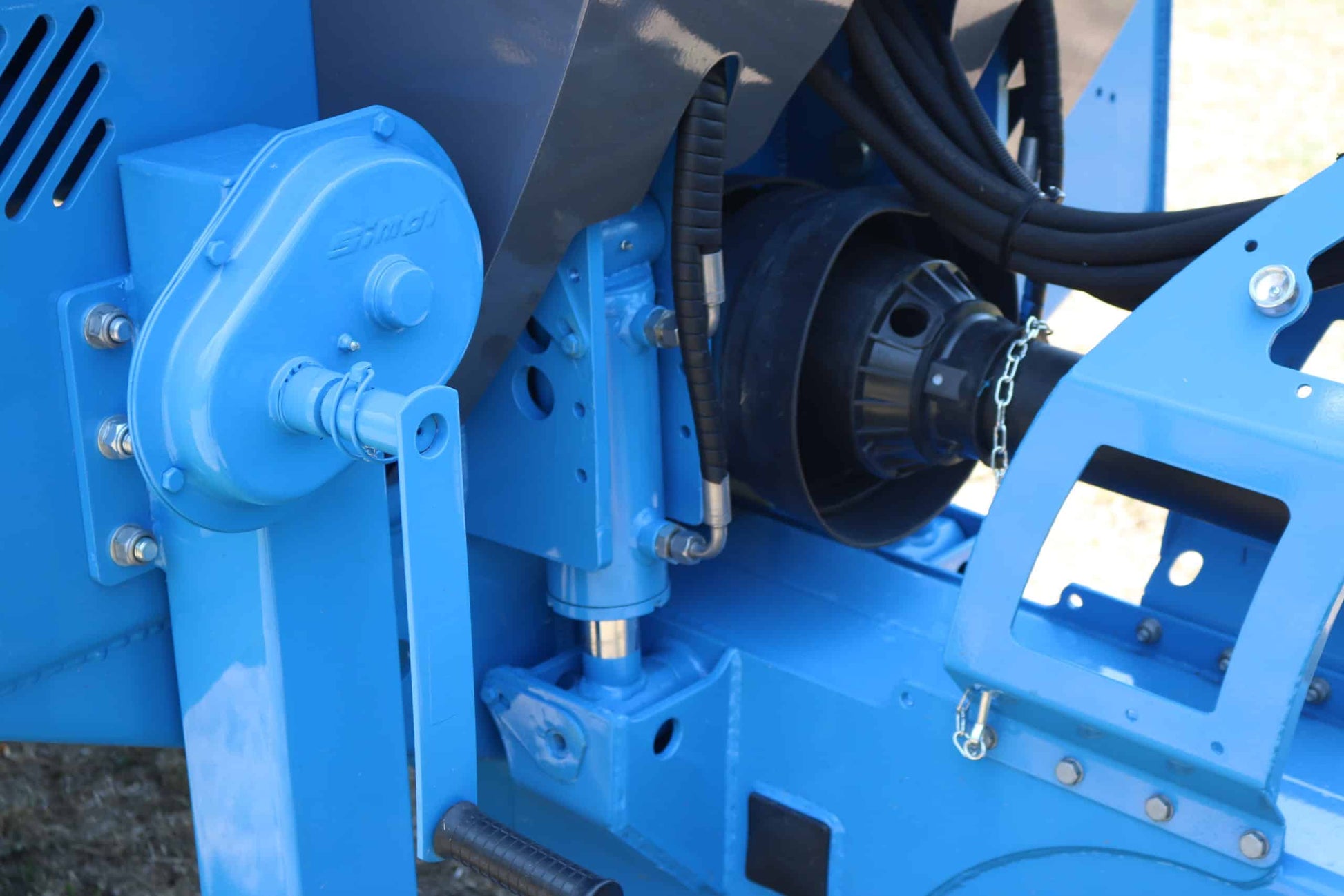

- 540 rpm PTO Drive w. Wide Angle Shaft
- 2050mm High Rear Beaters
- 180mm x 8mm Beater Tube
- Cam Clutch Protected Drive
- HARDOX Cutting Blades and Spreading Paddles
- 800mm Spreading Plates w. Replaceable Paddles (possible to spread lime)
AXLE:
- Single ADR 150mm Axle (non-suspended)
- 18,000kg Capacity
- Hyd Brakes
TYRES:
- 23.1-26 Alliance Tyres
OPTIONS:
- Included on this machine

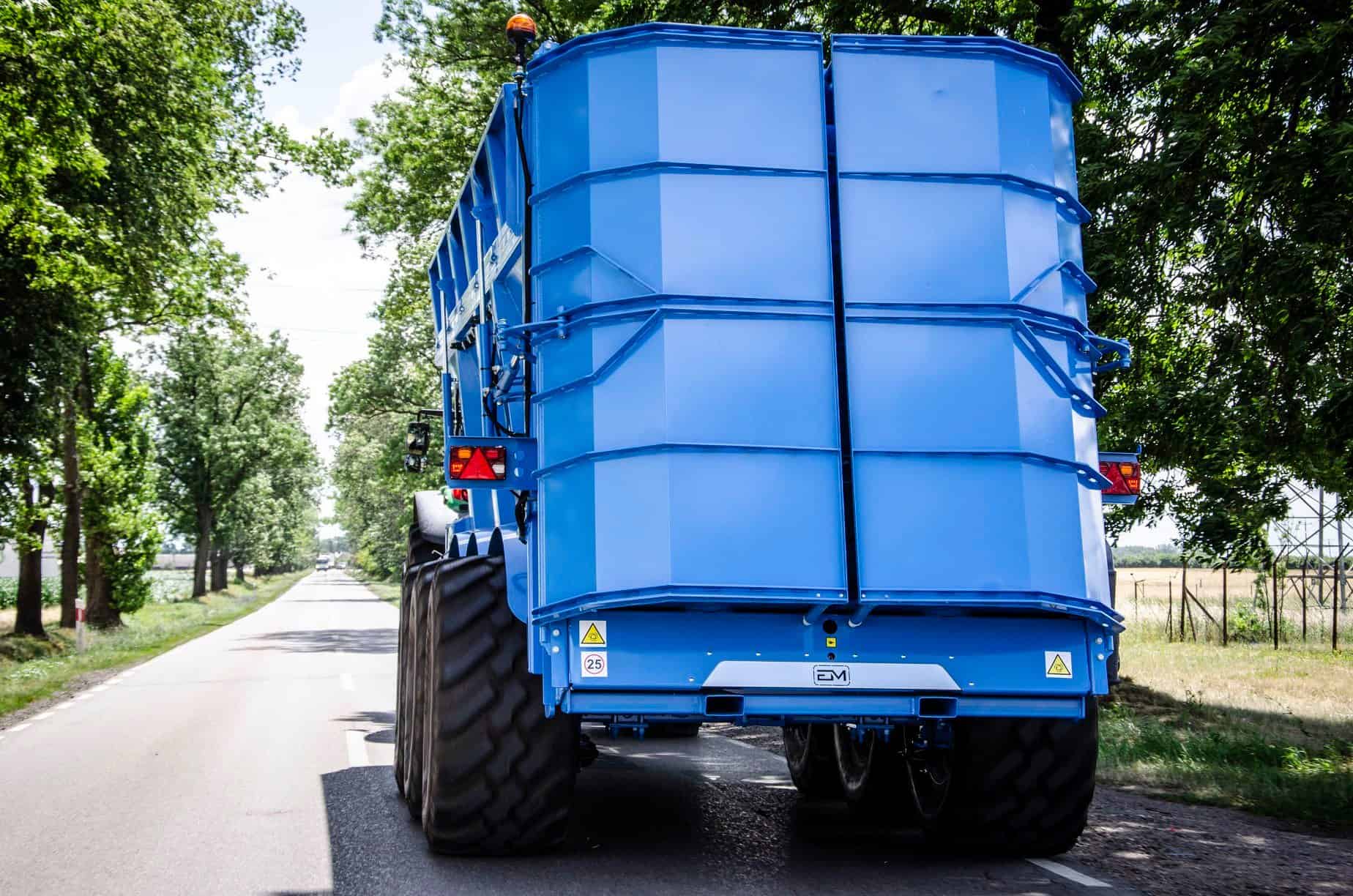

- Rear slurry door
- Wide angle PTO shaft
