Buffalo RX-1650 Manure Spreader

Skip to product information
1 of 15
View full details

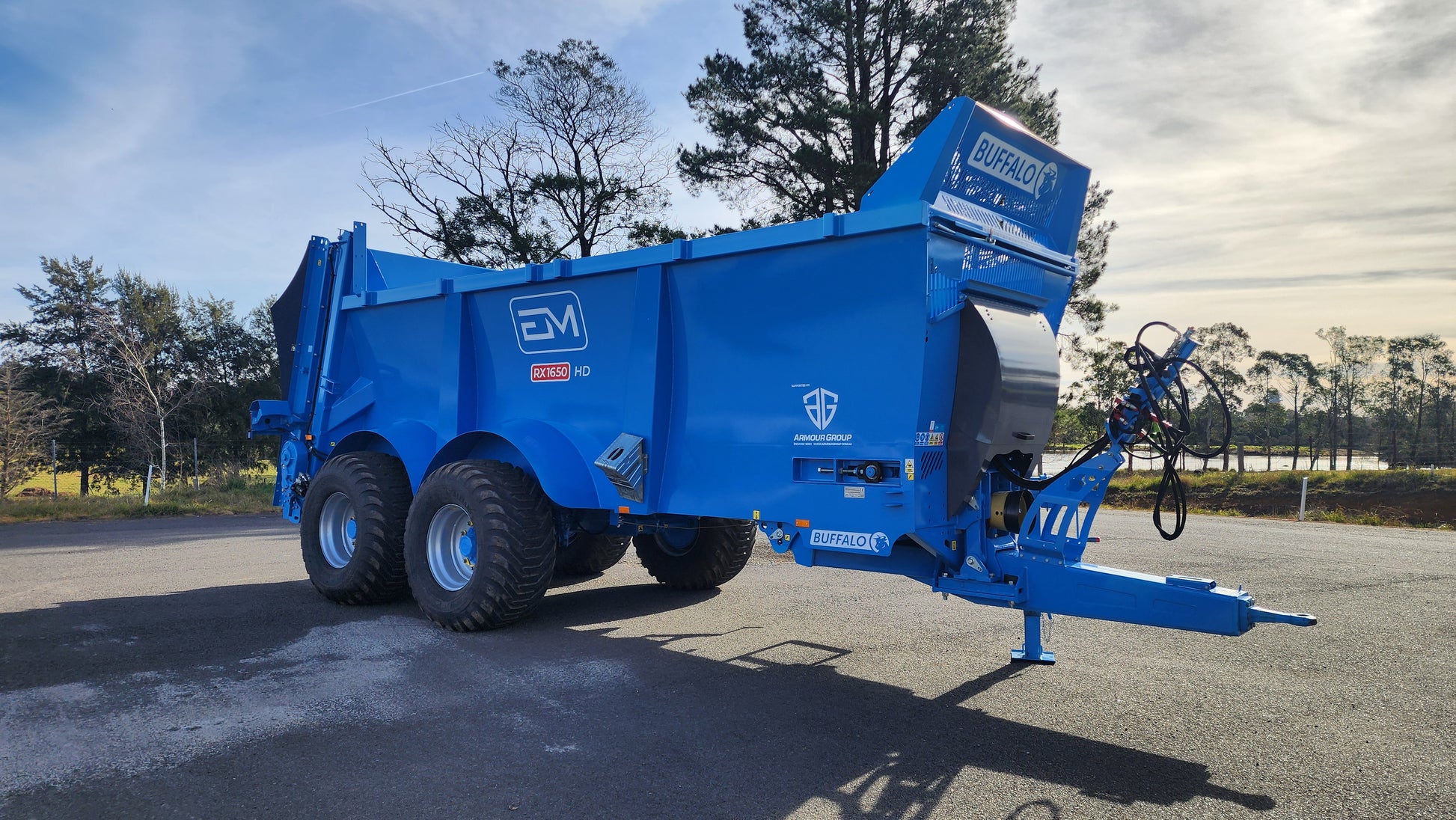

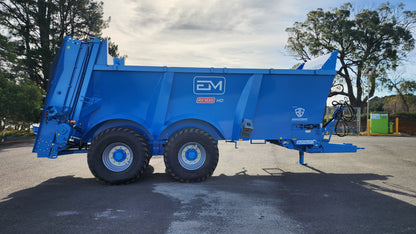

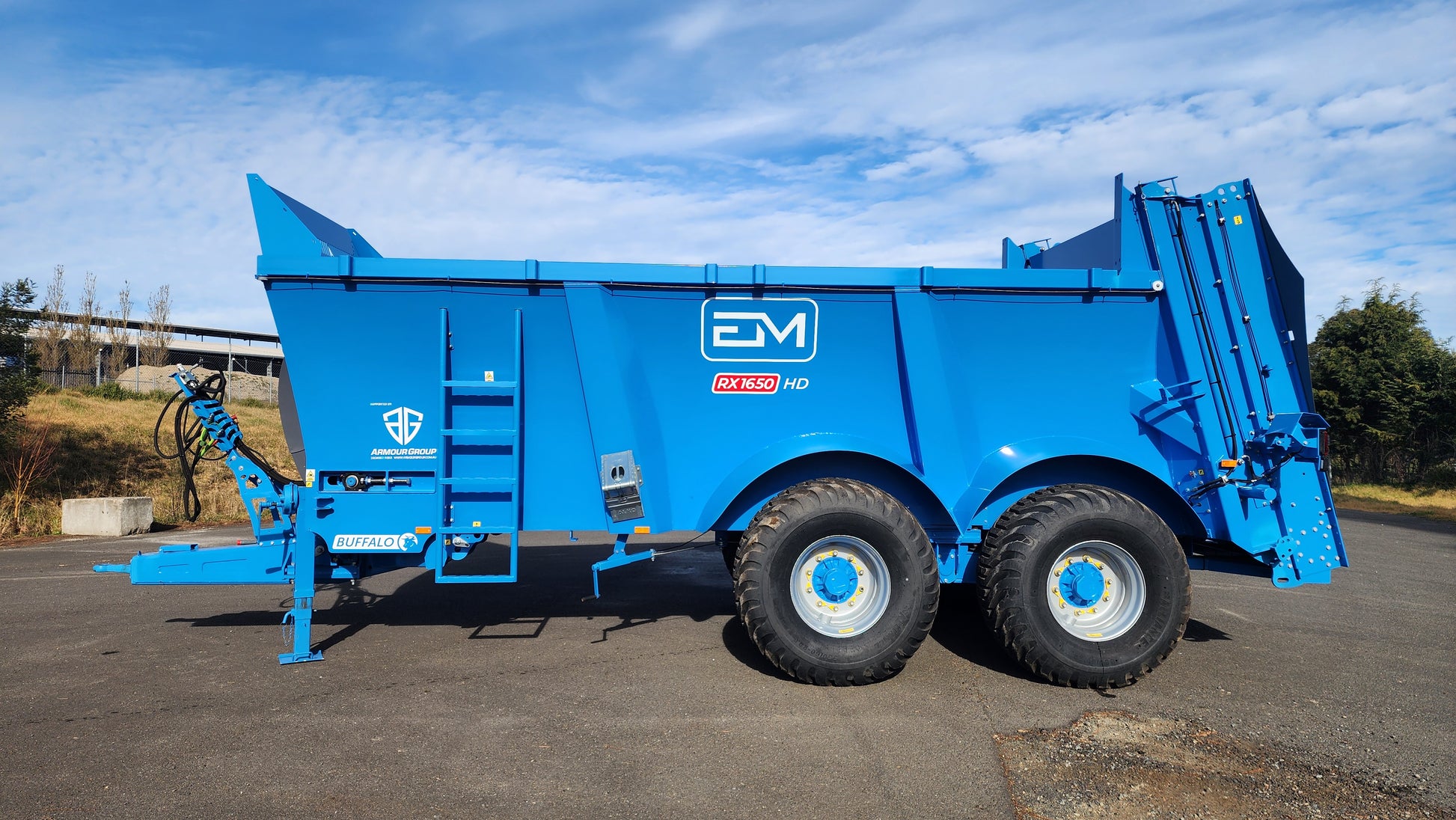

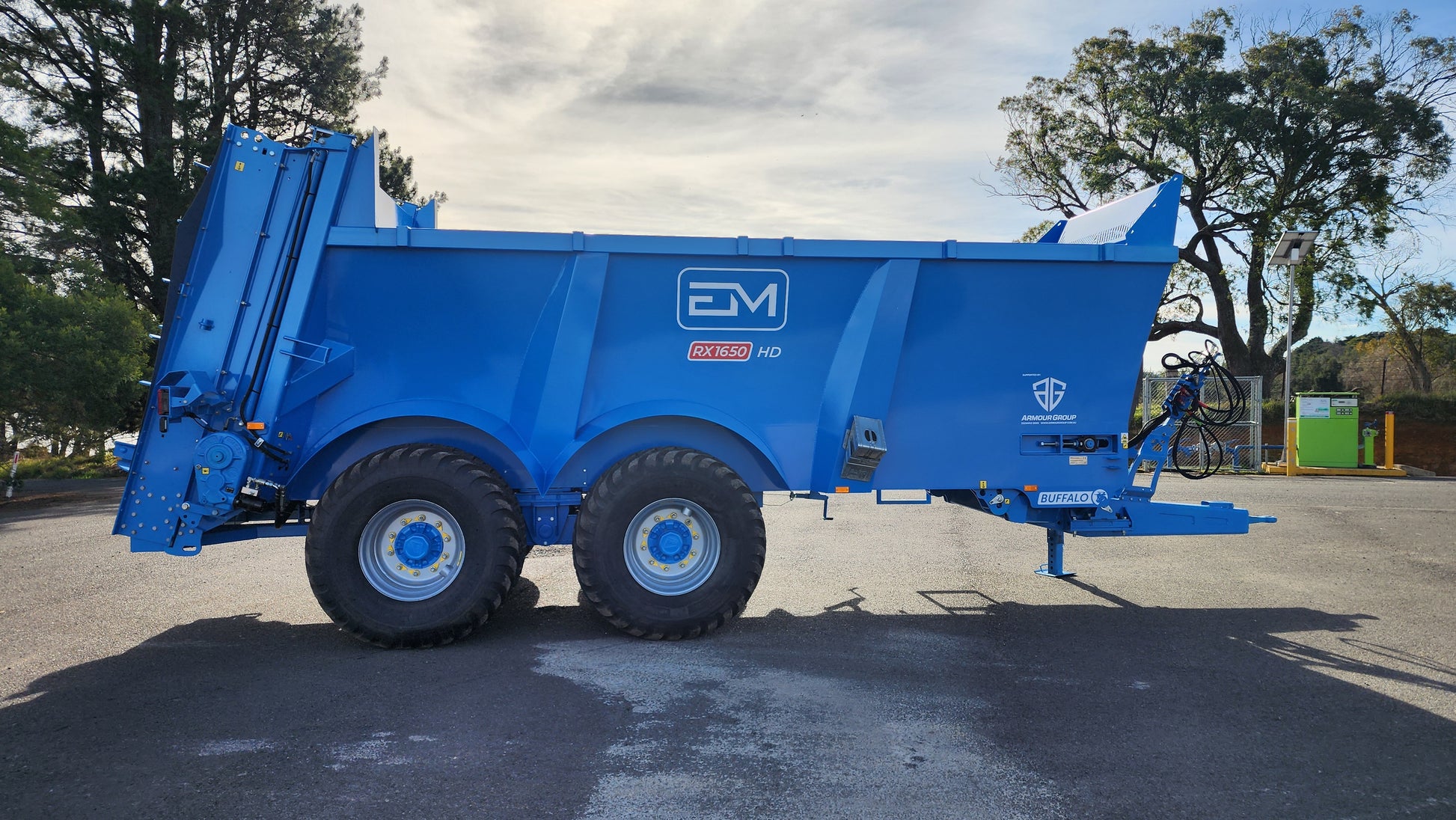

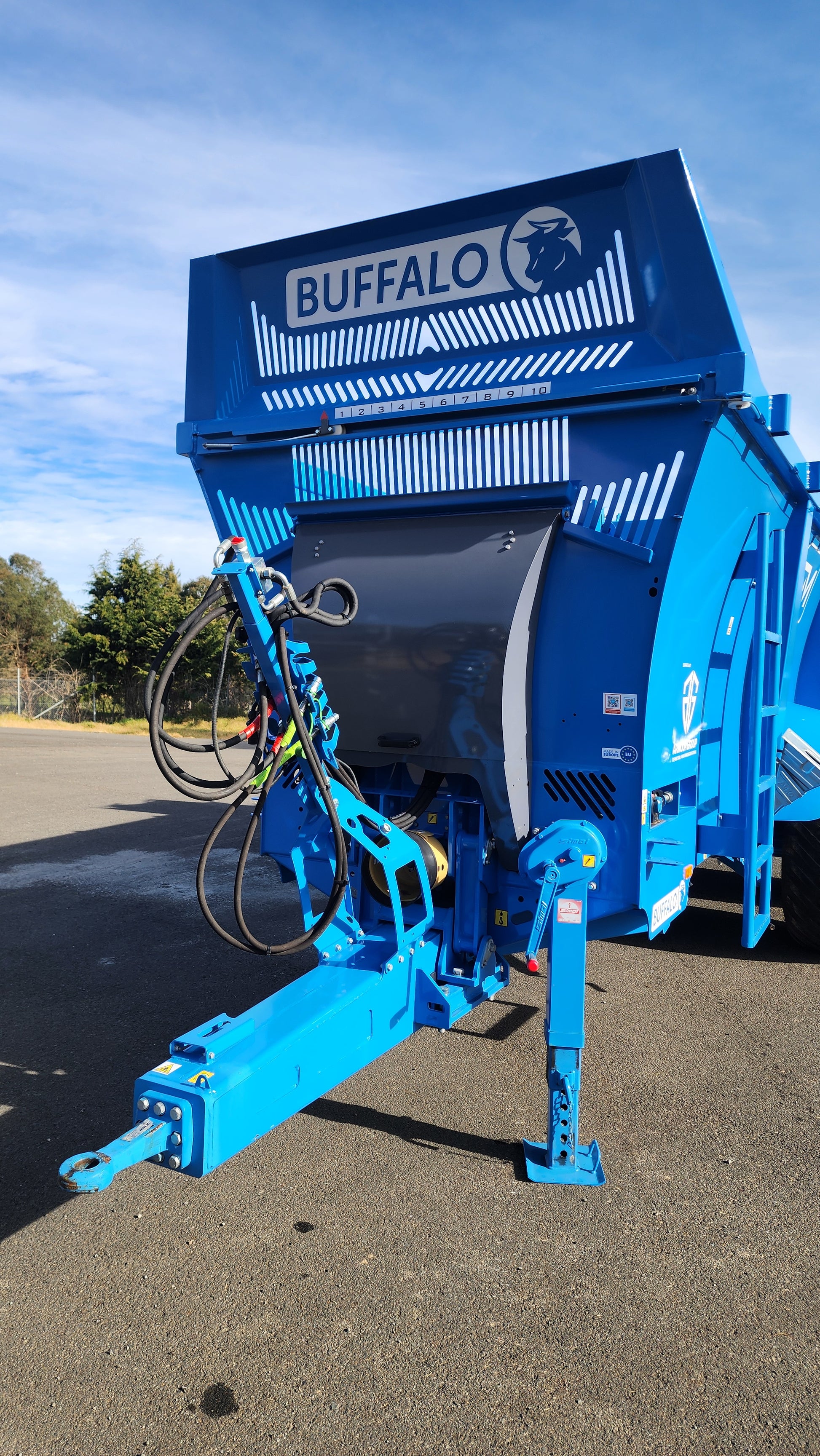

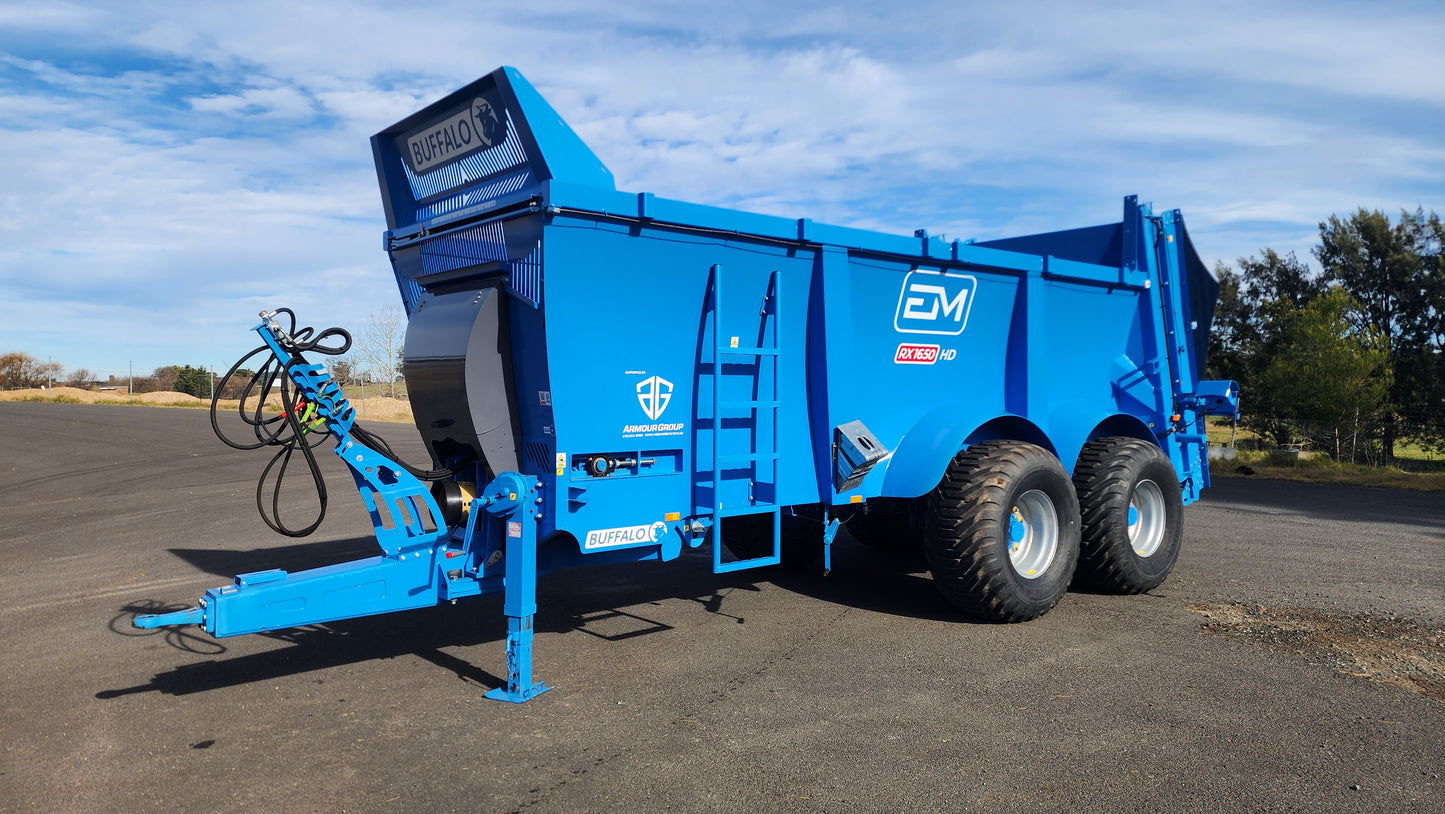

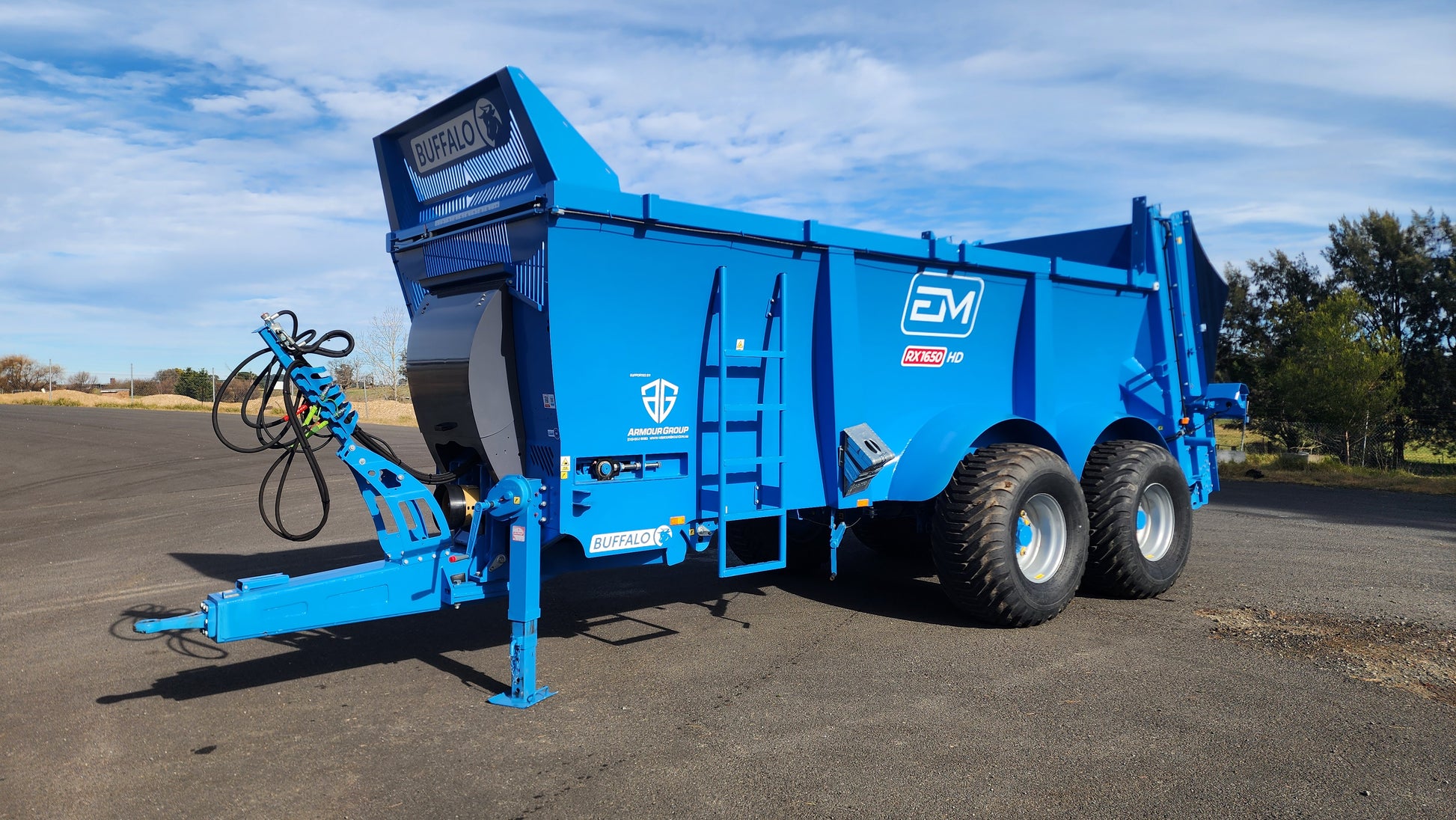

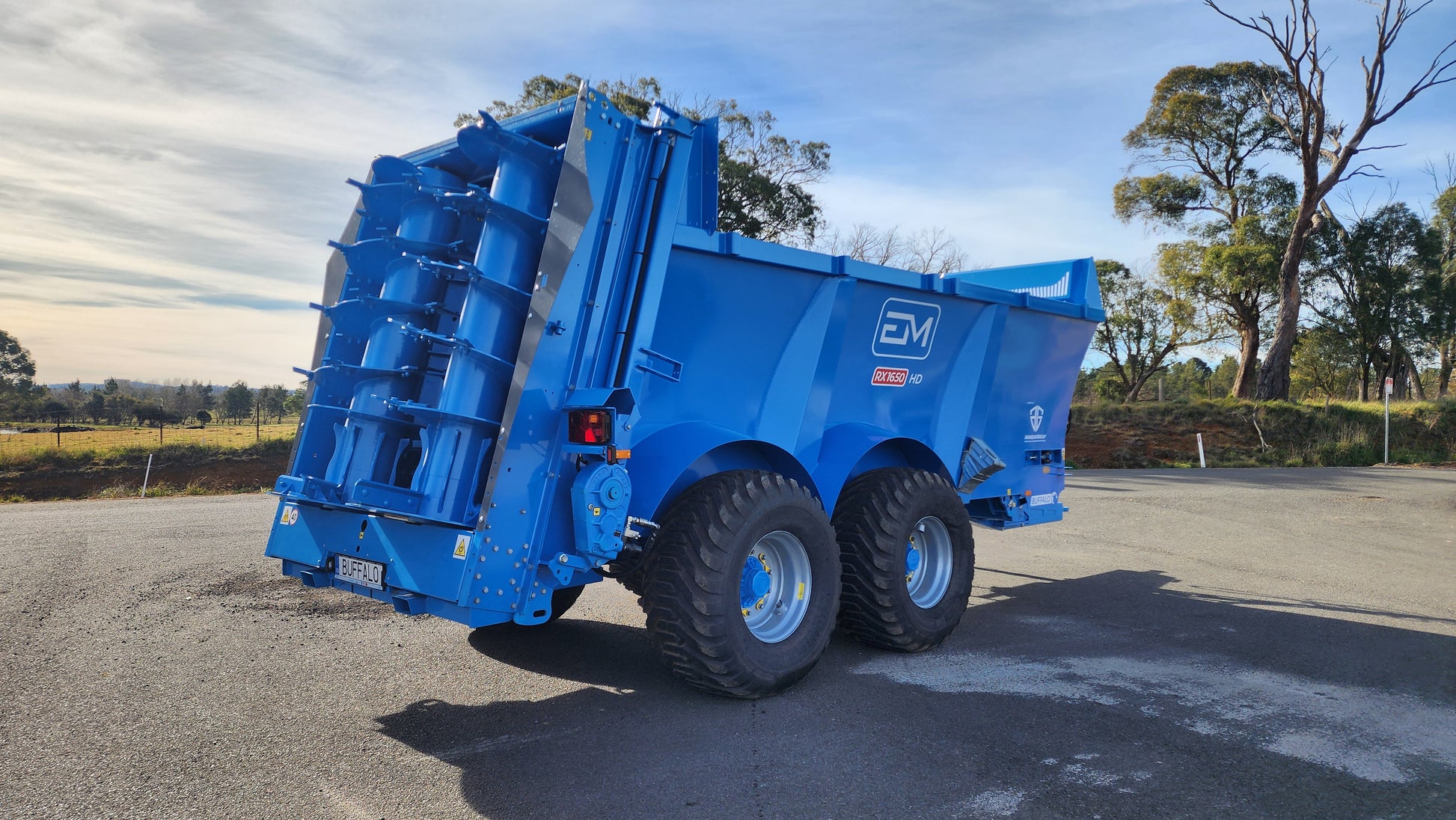

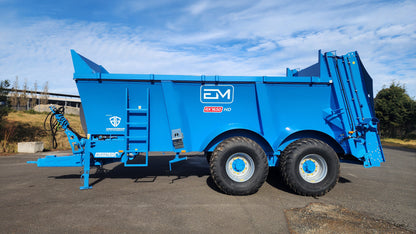

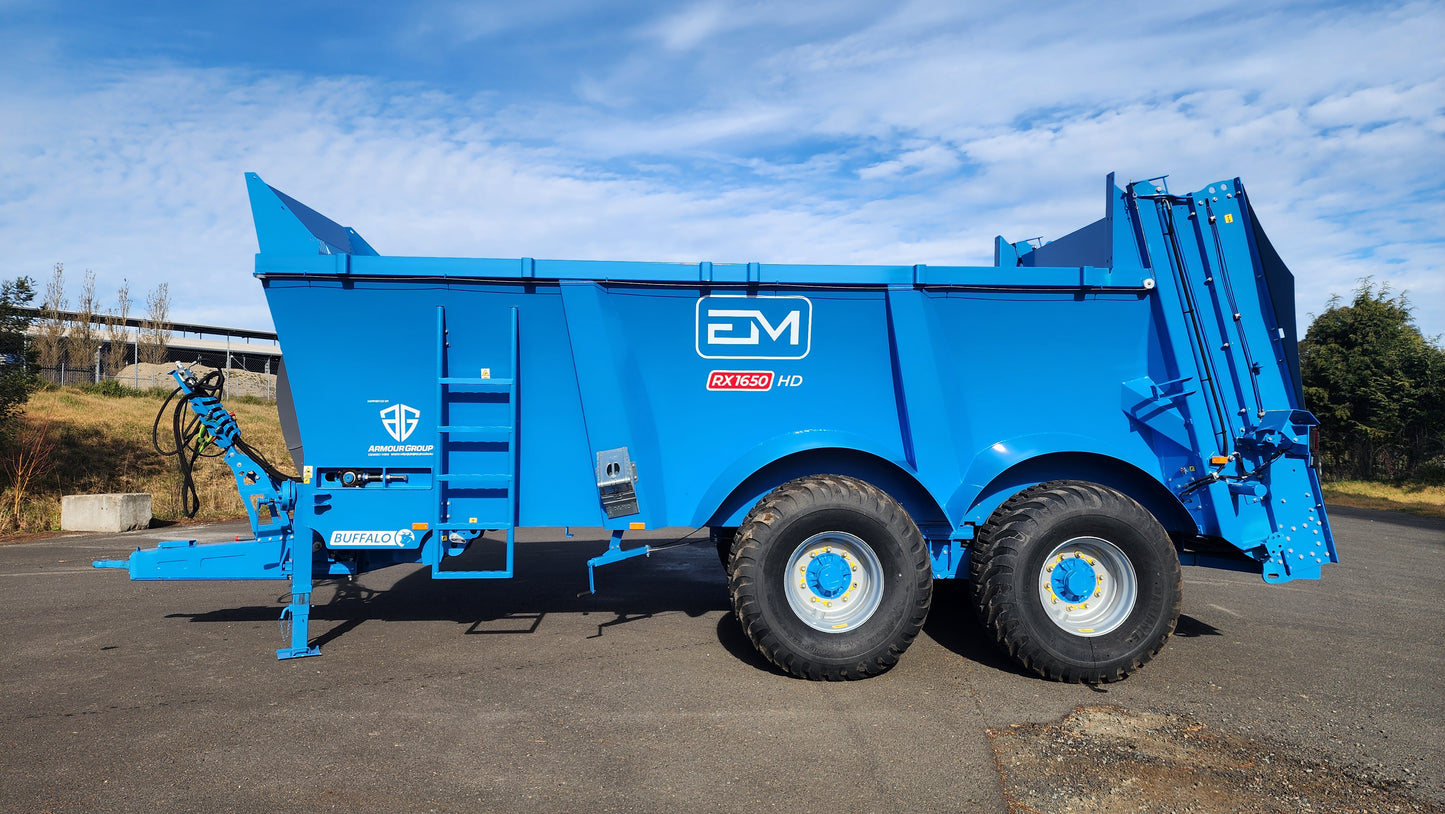

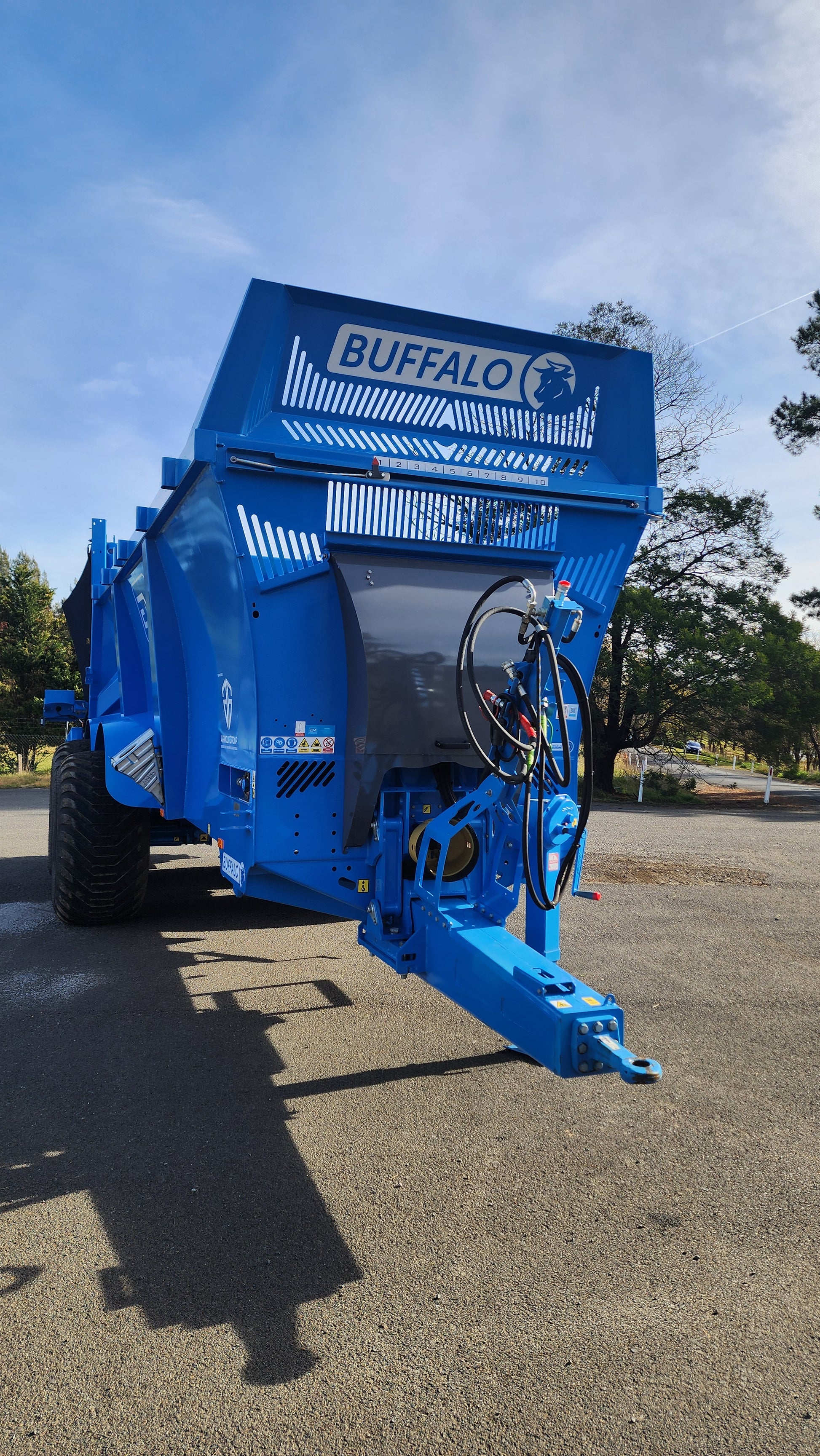

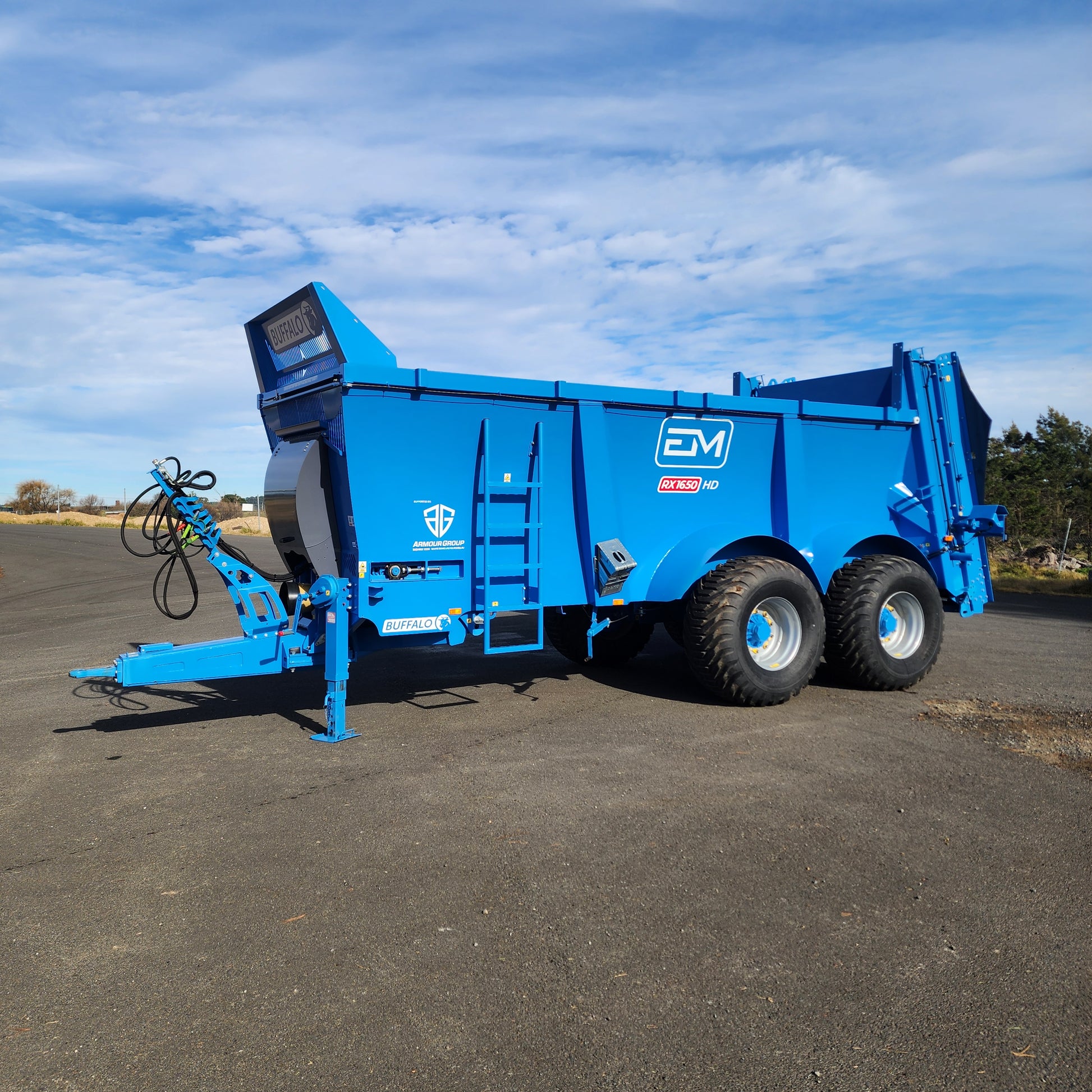

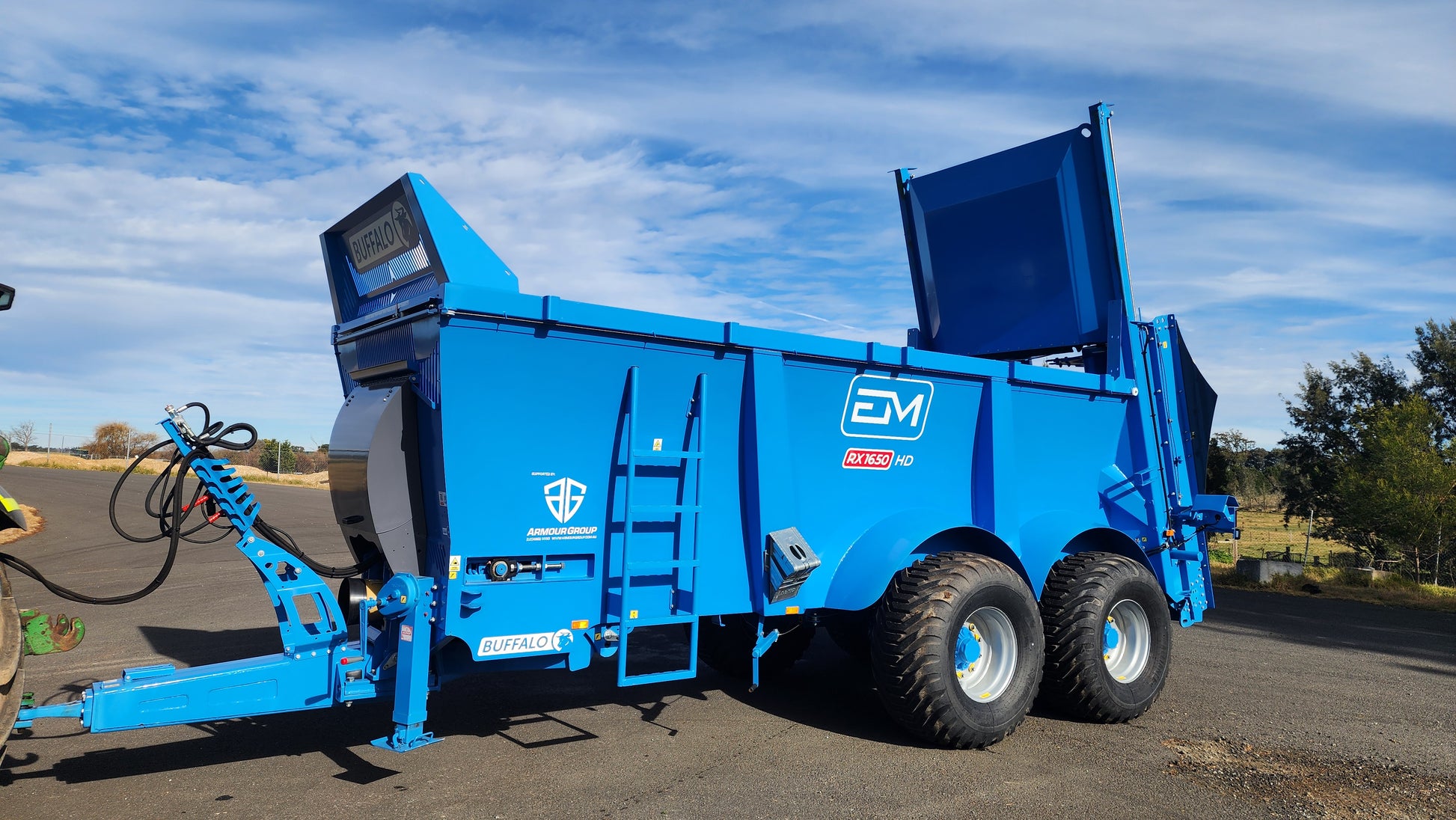

EM RX-1650HD Vertical Beater Manure Spreader

BODY:

  • 16.5m2 Capacity (22.5m3 w. Extensions)
  • Tapered Body made from 6mm Floor & 6mm Walls in S355J2+N Steel (355 grade steel)
  • 5400mm L x 1300mm H x 1500-2000mm W, Internal Body Dimensions
  • Rear Slurry Door w. Indicator
  • Mudguards

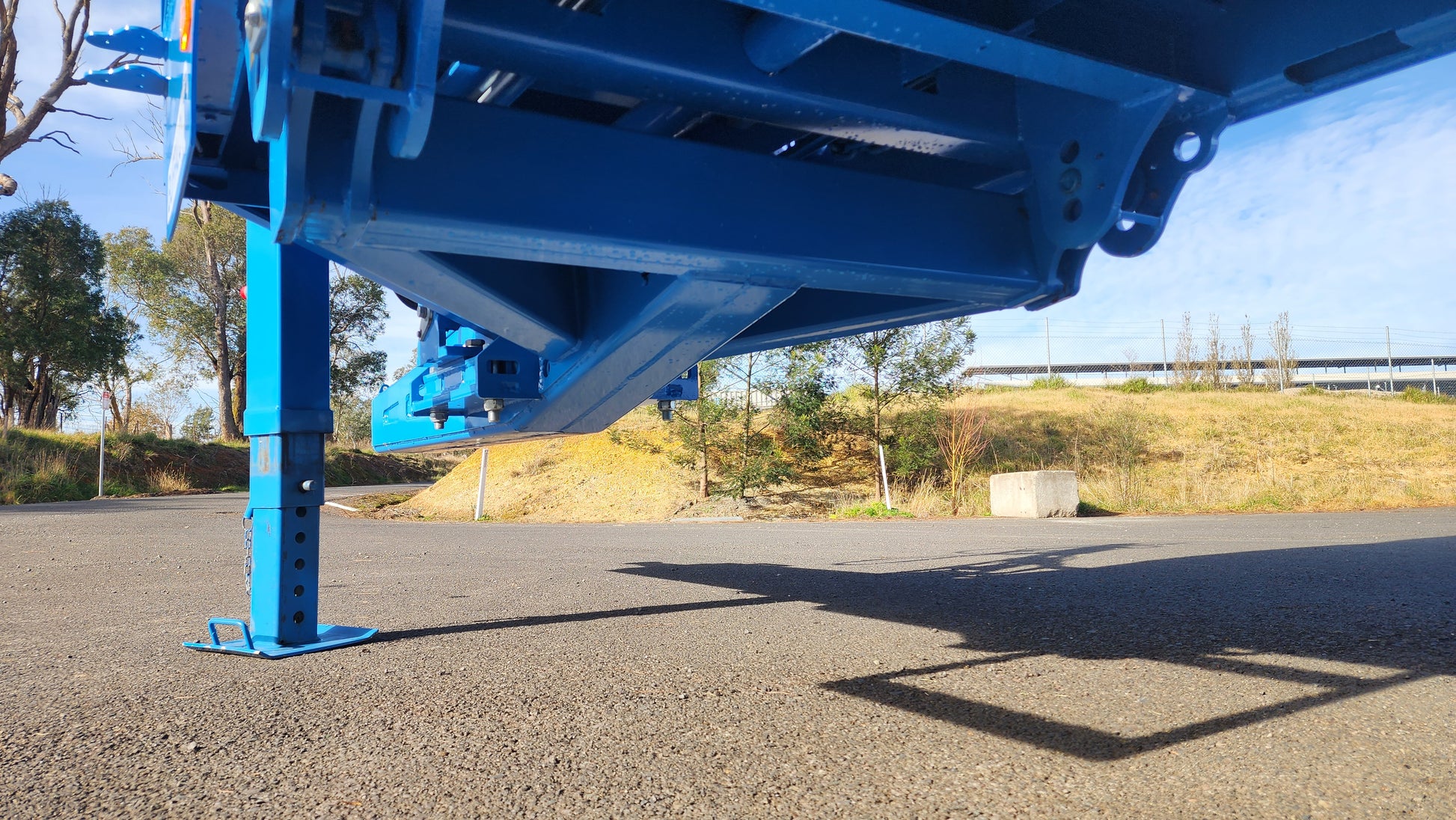

  • Manual Jack Stand
  • Load Cell Ready
  • LED Taillights

FLOOR:

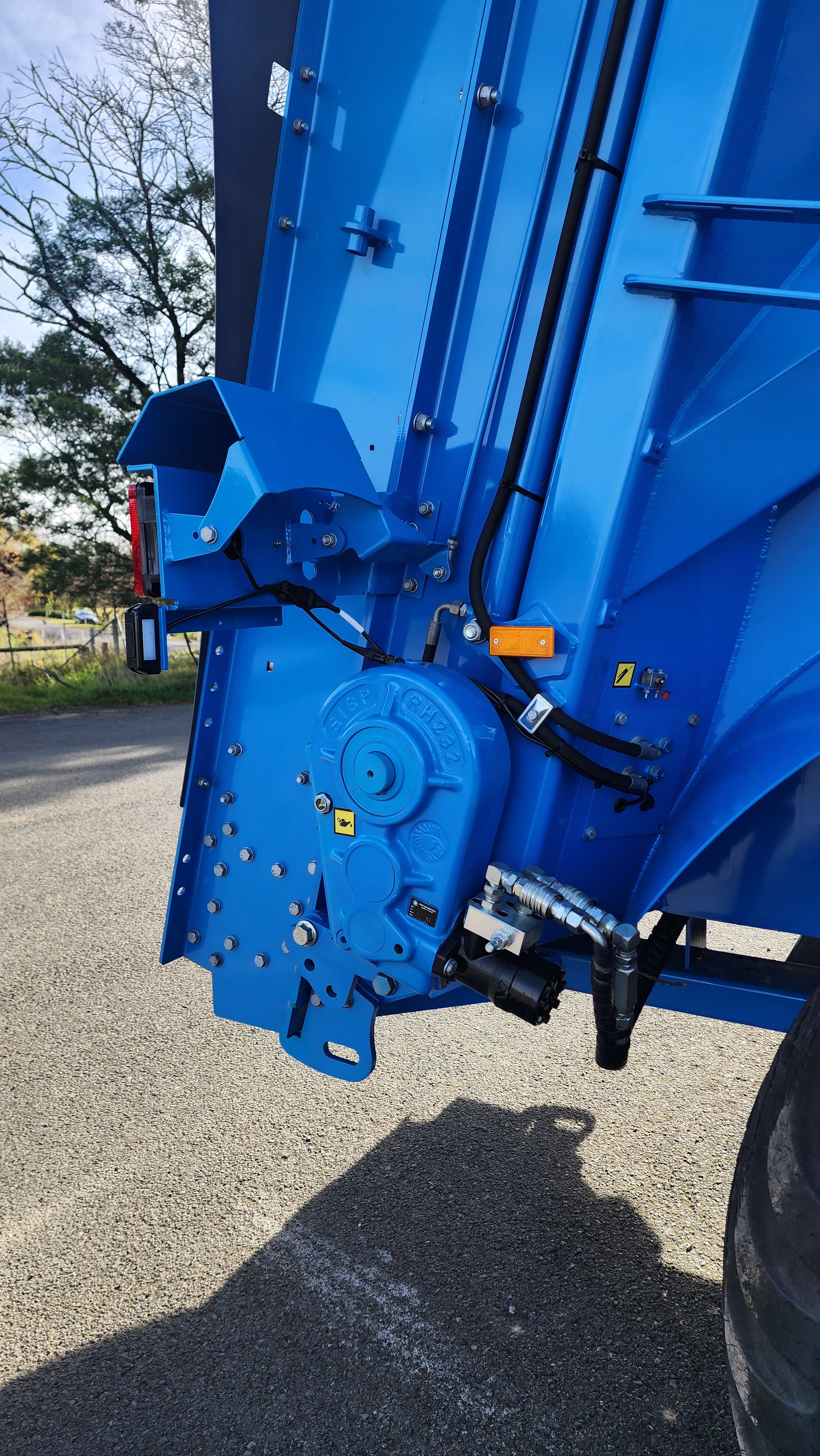

  • Hydraulic Drive Floor (Pressure Relief Protected)
  • 5,000nm Drive Gearbox
  • 18mm Floor Chains
  • Fully Welded & Bolt-in Cross Bars
  • 60mm Floor Drive Shaft
  • Greaseable Bearings on Floor Shafts

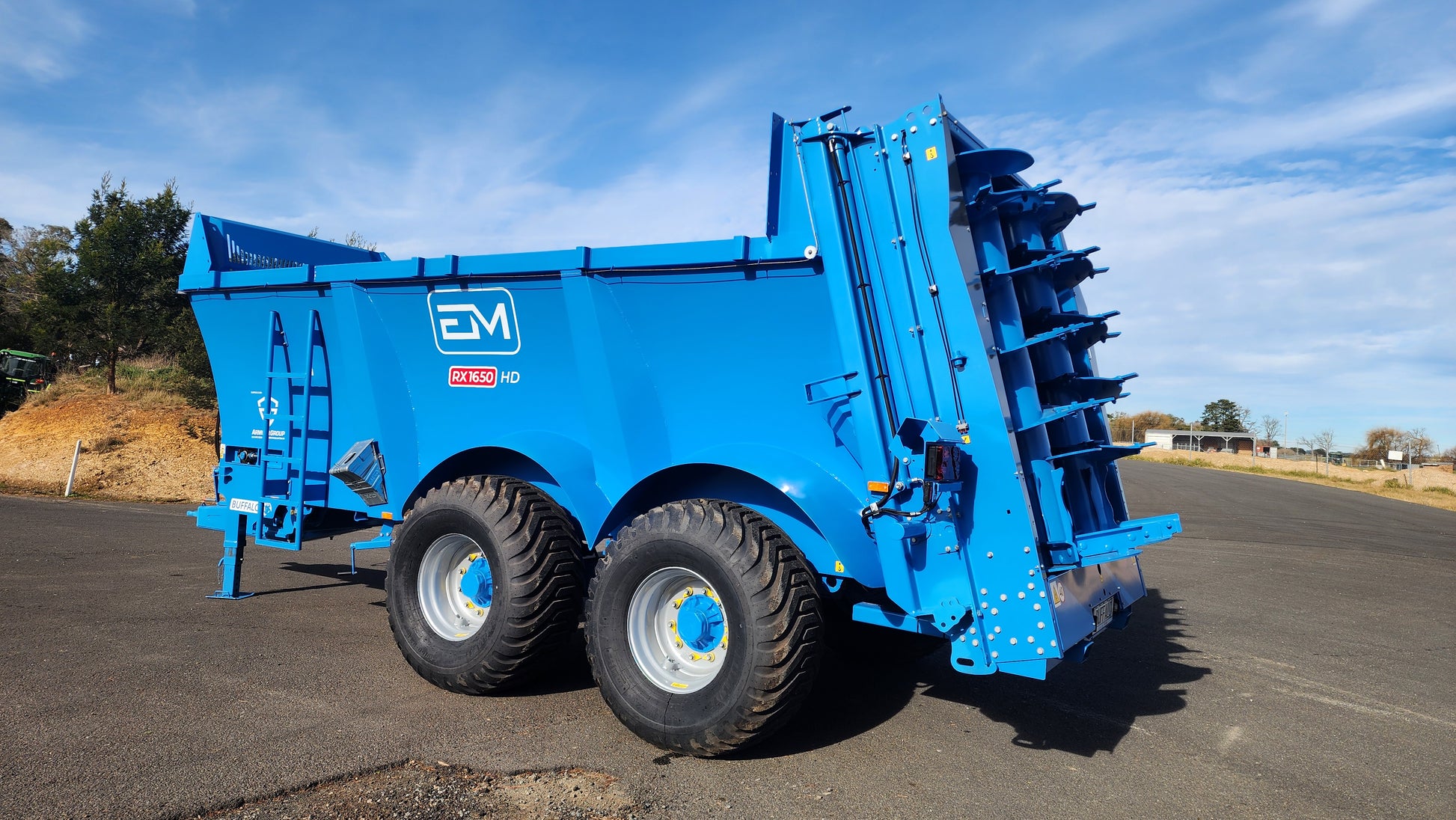

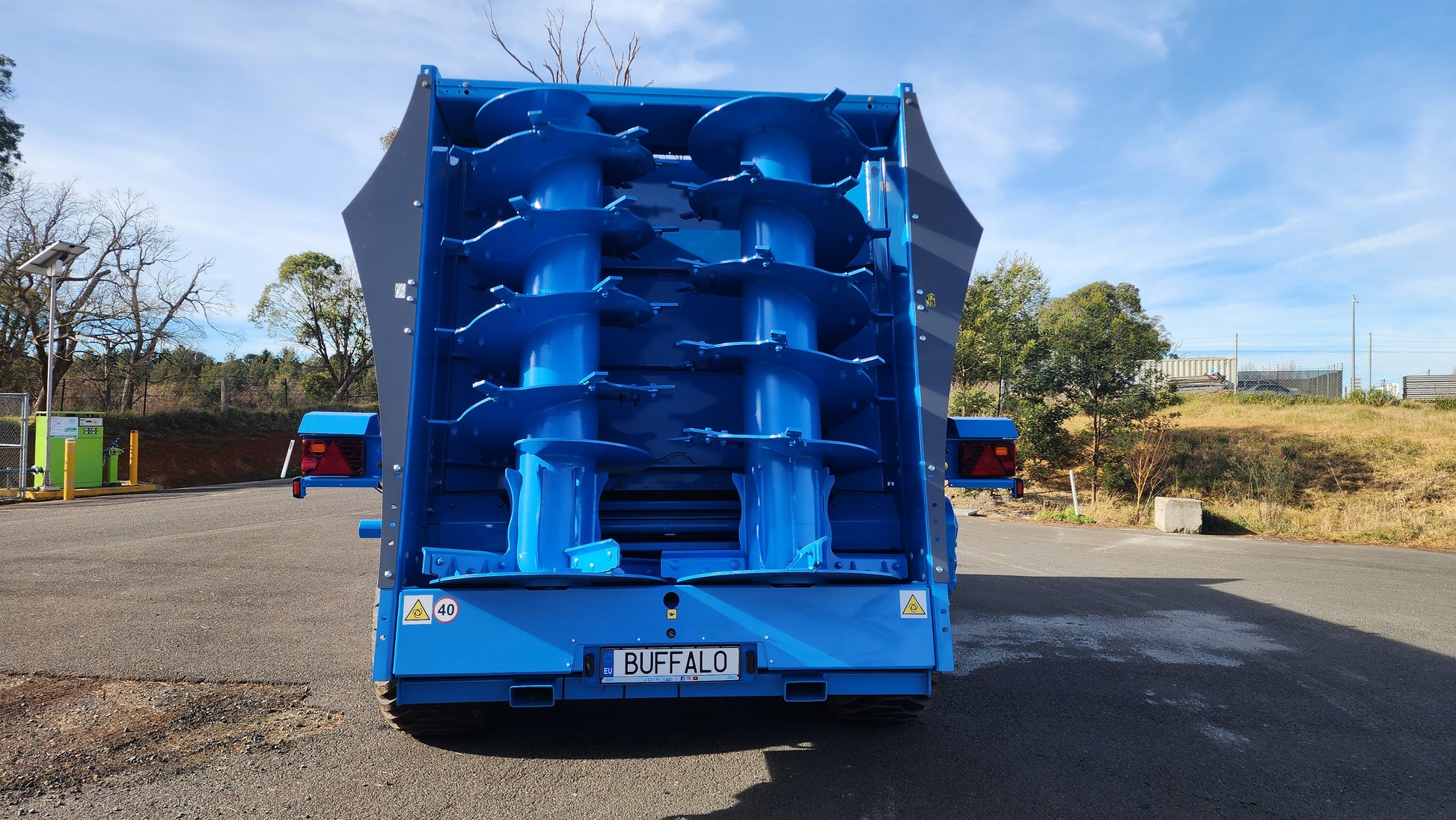

BEATERS:

  • Removable Beaters (convert trailer to silage cart)

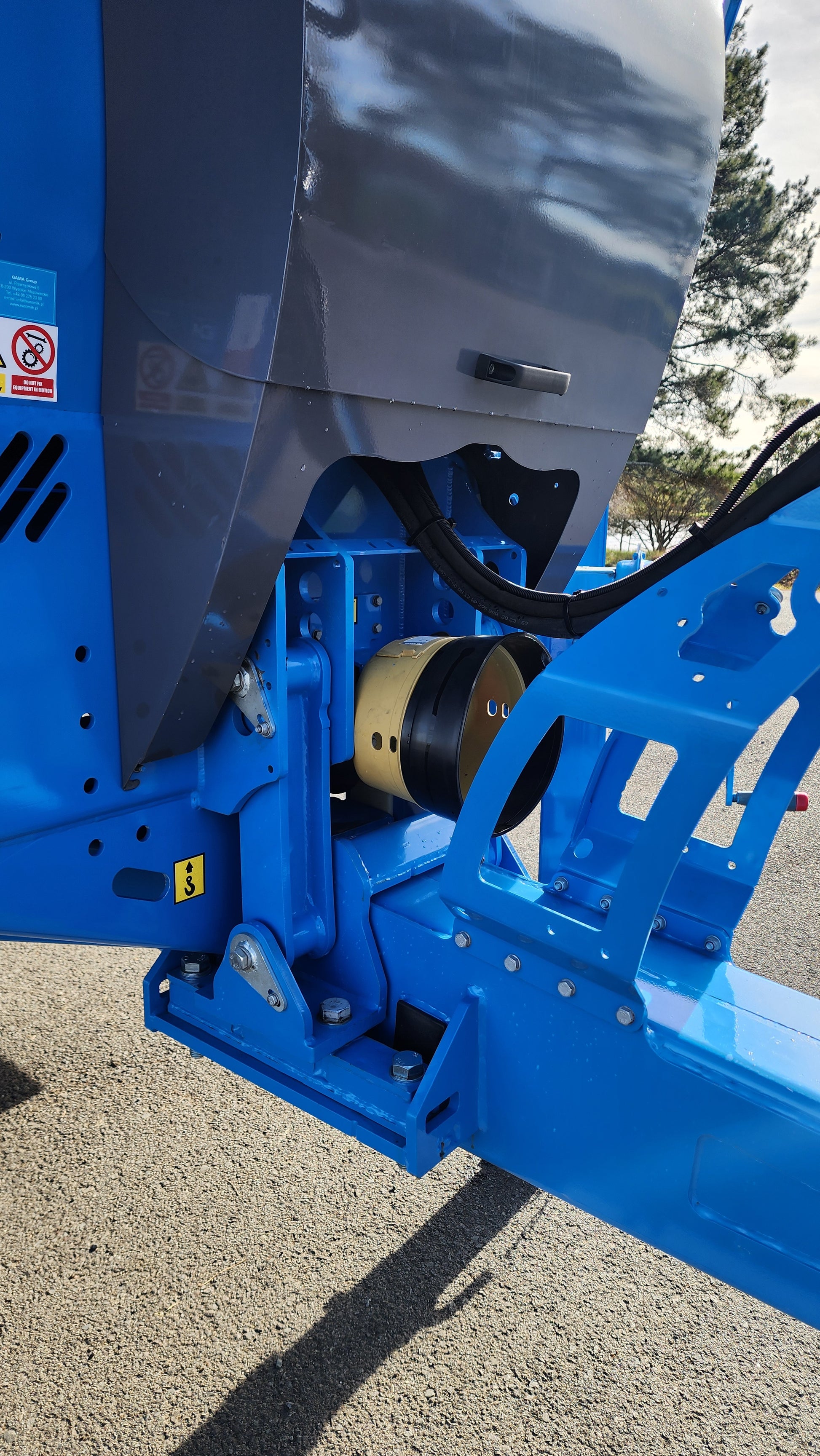

  • 1000 rpm PTO Drive w. Wide Angle Shaft
  • 2050mm High Rear Beaters
  • 324mm x 7.1mm Beater Tube
  • 250hp Gearbox
  • Cam Clutch Protected Drive
  • HARDOX Cutting Blades and Spreading Paddles
  • 1025mm Spreading Plates w. Replaceable Paddles (possible to spread lime)

AXLE:

  • Tandem Fabricated Rocker Box, 150mm Axles
  • 24,500kg Capacity
  • Hyd Brakes

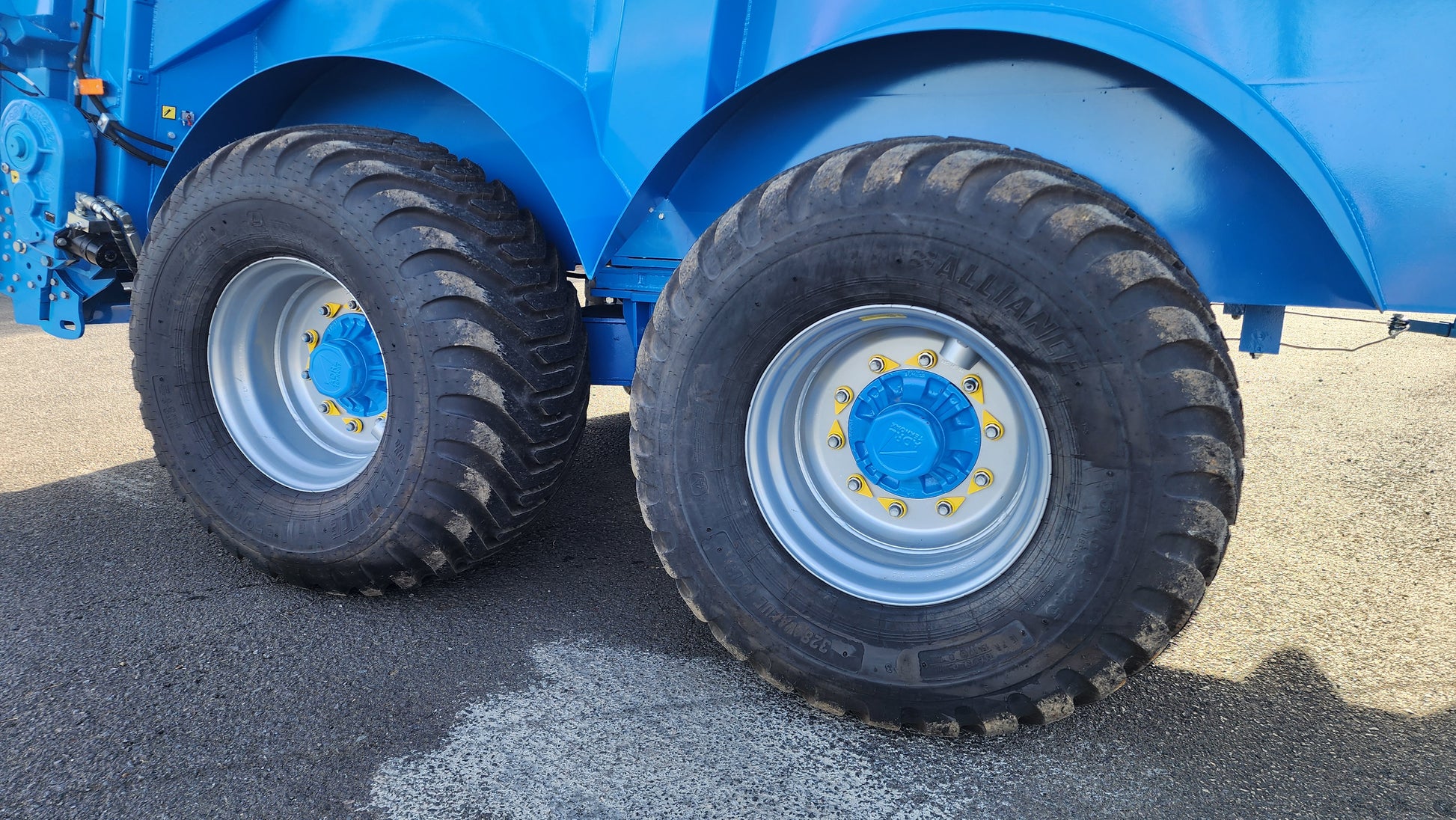

TYRES:

  • 550/60R22.5 Flotation Tyres


OPTIONS:

  • 600mm Side Extensions
  • Dual Floor Drives
  • Lime Paddles
  • Rate Controller
  • Scale System
  • Central Gearse Bank
  • Auto Grease System
  • Hyd Drawbar Suspension
  • Rear Deflector Doors
